    MediaTek Genio 1200 EVK

    The MediaTek Genio 1200 EVK is a premium edge-AI IoT platform for industrial, smart home, interactive retail, and commercial applications. It provides top of its class performance edge processing, multimedia, and multitasking OS, is well-suited for fanless enclosure designs, and has excellent power efficiency.

    • Smart Retail: Digital signage, desktop POS
    • Industrial: Edge AI, IoT gateway, HMI
    • Smart Home: Fitness, smart home

    Platform Highlights

    • Leading 6nm chip design
    • Octa-core CPU including 4x Super Cores: Arm Cortex-A78 and 4x Efficiency Cores: Arm Cortex-A55
    • Up to 16GB of quad-channel memory
    • Integrated Mali-G57 GPU to support Dual Display and AV1/H.265/H.264 codec
    • Embedded, powerful multi-core AI processor for Edge AI Applications
    • Support 32MP@30fps camera with internal ISP
    • Flexible high speed I/O interface to support WiFi-6 and 5G Sub-6 module
    • I/O support 1x PCIe 3.0, 1x PCIe2.0/USB3.1, 1x USB3.1, 2x USB2.0 6x UARTm and 1x Giga Ethernet MAC
    • Support Android/ Linux Yocto/ Ubuntu OS

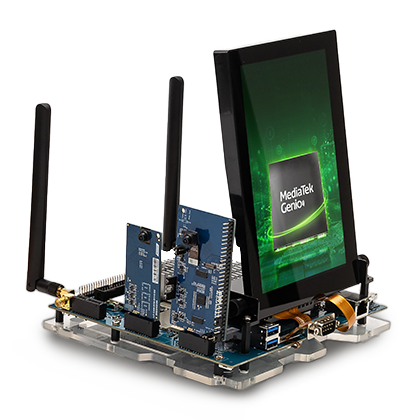

    MediaTek Genio 1200 EVK

    The EVK board offers includes the following hardware and interfaces:

    • MediaTek Genio 1200 SoC
    • 8GB of LPDDR4X-4266
    • 64GB eMMC5.1 onboard and UFS 2.1 interface
    • Wi-Fi 6 (2x2) + BT5.2 wireless connectivity
    • 2x MIPI CSI camera board with camera modules
    • 7-inch MIPI DSI panel with touch panel
    • 1x USB Type-C port (USB 3.2/DP MUX)
    • 2x USB 3.2 ports, 1x Micro USB OTG
    • 1x Micro USB for UART port
    • 1x UART port (Pin header)
    • 1x Micro SD card connector
    • 2x HDMI port (IN x1, OUT x1)
    • 1x LVDS connector
    • 1x eDP connector
    • 1x CAN-FD connector
    • 1x 10/100/1000M Ethernet RJ-45 connector
    • 1x M.2 slot key E, 1x M.2 slot key B
    • 1x micro SIM connector, 1x nano SIM connector
    • 1x 3.5mm earphone jack, 1x 3.5mm line out audio jack
    • Raspberry Pi compatible 40-Pin GPIO

    MediaTek Genio 1200 SoC

    Built using an ultra-efficient 6nm process, this Edge AI platform incorporates an Octa-core (4x2.2 GHz Arm Cortex-A78 & 4x2.0 GHz Arm Cortex-A55) CPU, Arm Mali-G57 MC5 GPU, integrated NPU (AI processor) with 4.8 TOPs and DSP into a single chip. An HEVC encoding acceleration engine ensures video captured via connected cameras can be encoded at up to FullHD4K resolution with minimum space used.

    Designed for products suitable for fanless enclosure designs and low power solutions.

    • Smart Retail: Digital signage, desktop POS
    • Industrial: Edge AI, IoT gateway, HMI
    • Smart Home: Fitness, smart home

    Specifications

    Application Processor (CPU)

    CPU

    4 x ARM Cortex A78, 2.2 GHZ

    CPU

    4 x ARM Cortex A55, 2.0 GHz

    Memory

    (Memory Speed/Type/RAM)

    Up to 16GB, quad-channel LPDDR4X @ 2133Mbps

    Type

    eMMC 5.1/UFS2.1 1-Lane

    AI Engine

    MediaTek NPU 3.0, support multi-core model computing

    DSP

    Tensilica

    HiFi4 DSP

    Display

    GPU

    Arm Mali-G57 MC5, 880MHz

    Display Support

    OpenGL, OpenCL, Vulkan

    Internal display interface

    MIPI-DSI, eDP

    External display interface

    HDMI, DP

    Video Encode & Decode

    Video Encode

    4K60, H.265/H.264

    Video Decode

    4K90, AV1/VP9/H.265/H.264

    Peripheral Interfaces (IO)

    IO

    1x PCIe Gen3 2-Lane 1x PCIe Gen2 1-Lane (share with 1x USB3.1) 1x SD/SHDC/MMC and SDIO3.0/3.0

    Host/Host Device

    2x USB 3.1 (Host) ; 2x USB 2.0 (Host/Device)

    1x Giga Ethernet MAC

    1x SD/SHDC/MMC and SDIO3.0/3.0

    Audio

    6xUART, 6xSPI, 6xI2C, 4xPWM, 2x I2S for Audio

    Wireless Connectivity (Wi-Fi/Bluetooth)

    Wi-Fi/Bluetooth

    Enabled via PCIe or USB 2.0 interface
