MediaTek Genio 510 EVK

The MediaTek Genio 510 EVK is the evaluation kit for the Genio 510 (MT8370) highly capable edge-AI IoT platform for smart homes, interactive retail, industrial and commercial applications. It provides highly responsive edge processing, advanced multimedia capabilities, plus several multi-tasking OS and diverse connectivity options.

Designed for products suitable for fanless enclosure designs and off-grid power solutions.

  • Smart Retail: Digital signage, desktop POS
  • Industrial: Edge AI, IoT gateway, HMI
  • Smart Home: Fitness, smart home appliances

VIEW DOCUMENTS | SOFTWARE WIKI | BUY NOW

Platform Highlights

  • Leading 6nm chip design
  • Six-core CPU including 2x Super Cores: ARM Cortex-A78 and 4x Efficiency Cores: ARM Cortex-A55
  • Up to 8GB of quad-channel memory
  • Integrated Mali-G57 GPU to support Dual Display and AV1/H.265/H.264 codec
  • Embedded powerful multi-core AI processors for Edge AI Applications
  • Support 32MP@30fps camera with internal ISP
  • Flexible high speed I/O interface to support WiFi-6 and 5G Sub-6 module
  • I/O support 1x PCIe Gen2, 1x USB3.1, 2x USB2.0 OTG/Host and 1x Giga Ethernet MAC
  • Support Android/ Linux Yocto/ Ubuntu OS

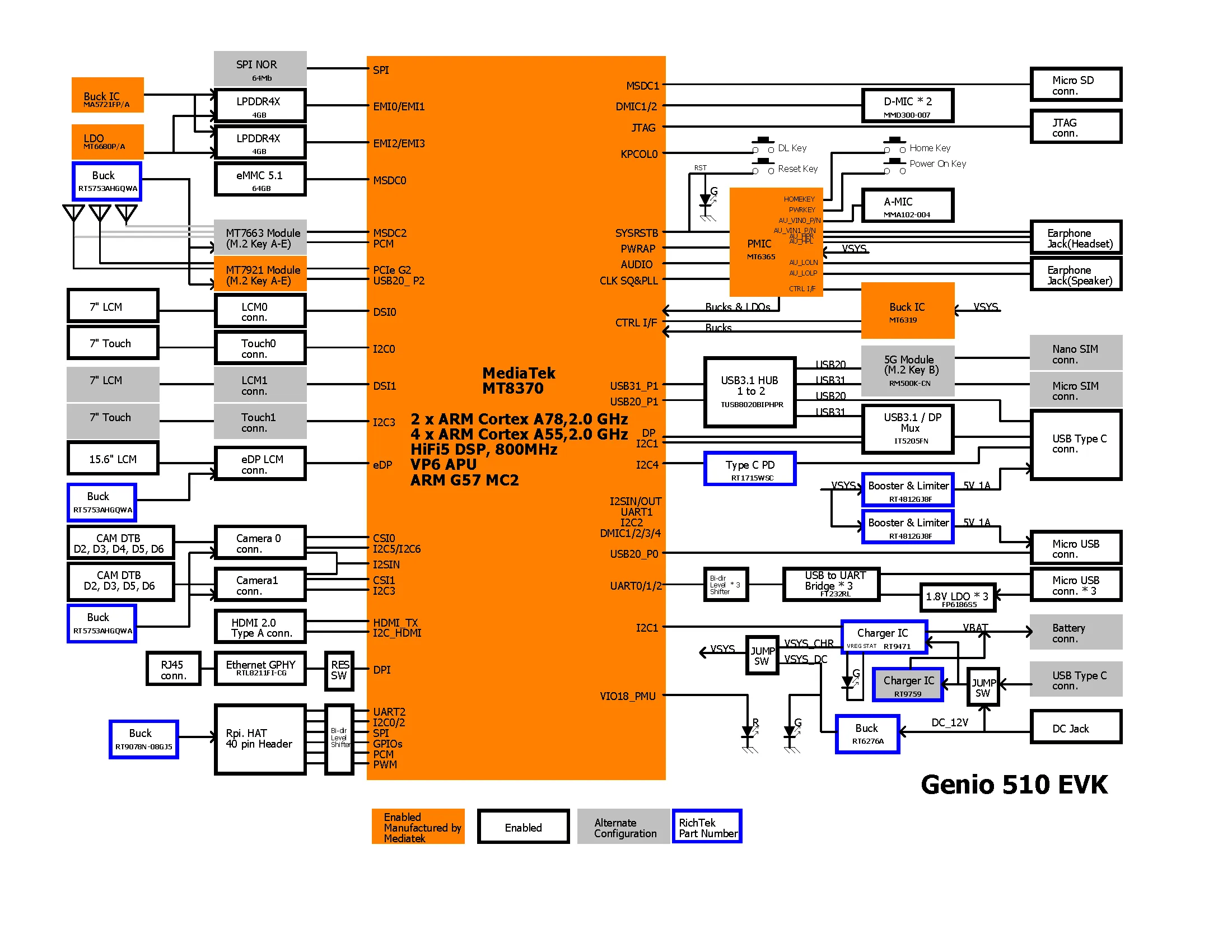

MEDIATEK GENIO 510 EVK BLOCK DIAGRAM

MediaTek Genio 510 EVK

The EVK board offers includes the following hardware and interfaces:

  • MediaTek Genio 510 SoC (MT8370)
  • 4GB of LPDDR4X
  • 64GB eMMC onboard
  • Wi-Fi 6 2x2 wireless connectivity
  • MIPI CSI Daughterboard with cameras
  • 2x USB 2.0 ports
  • 1x Micro SD card slot
  • 1x HDMI Tx port
  • 1x RJ45 Fast Ethernet
  • Raspberry Pi compatible 40-pin GPIO
  • a 7-inch Full HD LCM touch panel

MediaTek Genio 510 SoC

Built using an ultra-efficient 6nm process, this Edge AI platform incorporates a six-core (2x2.2 GHz Arm Cortex-A78& 4x2.0 GHz Arm Cortex-A55) CPU, Arm Mali-G57 MC2 GPU, integrated APU (AI processor) and DSP into a single chip. An HEVC encoding acceleration engine ensures video captured via connected cameras can be encoded at up to Full HD resolution with minimum space used.

Designed for products suitable for fanless enclosure designs and low-power solutions.

  • Smart Retail: Digital signage, desktop POS
  • Industrial: Edge AI, IoT gateway, HMI
  • Smart Home: Fitness, smart home

LEARN MORE

Specifications

Application Processor (CPU)

CPU

2 x ARM Cortex A78, 2.0 GHZ

CPU

4 x ARM Cortex A55, 2.0 GHz

Memory

(Memory Speed/Type/RAM)

4-channel LPDDR4X 3733Mbps up to 8GB

Type

eMMC 5.1

AI Engine

Tensilica VP6 MediaTek APU3.0, support multi-core model computing

DSP

DSP

Tensilica HiFi5 DSP

Display

GPU

GPU ARM Mali-G57 MC2, support OpenGL/CL/Vulkan

Display Support

Display support up to one 4K and one 2k

Internal display interface

MIPI-DSI/eDP

External display interface

HDMI/DP

Video Encode & Decode

Video Encode

4K30, H.265/H.264

Video Decode

4K60, AV1/VP9/H.265/H.264

Peripheral Interfaces (IO)

PCLe

1x PCIe Gen2 1-Lane

Host/Host Device

1x USB 3.1 (Host), 2x USB 2.0 (Host/Device)

Interfaces

1x Giga Ethernet MAC; 1x SD/SHDC/MMC and SDIO3.0/3.0 4xUART, 6xSPI; 4xI2C

Audio

4xPWM, 5x I2S for Audio

Wireless Connectivity (Wi-Fi/Bluetooth)

Interface

Through PCIe/USB2.0 interface

Camera

ISP/Recording Resolution

Internal ISP for 32MP@30fps 2x MIPI CSI-2 4-Lane

Package (Size)

Type

VFBGA, 15*15*0.9mm
