    MediaTek Genio 510 EVK

    The MediaTek Genio 510 EVK is the evaluation kit for the Genio 510 (MT8370) highly capable edge‑AI IoT platform for smart homes, interactive retail, industrial and commercial applications. It provides highly responsive edge processing, advanced multimedia capabilities, plus several multi‑tasking OS and diverse connectivity options.

    Designed for products suitable for fanless enclosure designs and off‑grid power solutions.

    • Smart Retail: Digital signage, desktop POS
    • Industrial: Edge AI, IoT gateway, HMI
    • Smart Home: Fitness, smart home appliances

    Platform Highlights

    • Leading 6nm chip design
    • Six-core CPU including 2x Super Cores: ARM Cortex-A78 and 4x Efficiency Cores: ARM Cortex-A55
    • Up to 8GB of quad-channel memory
    • Integrated Mali-G57 GPU to support Dual Display and AV1/H.265/H.264 codec
    • Embedded powerful multi-core AI processors for Edge AI Applications
    • Support 32MP@30fps camera with internal ISP
    • Flexible high speed I/O interface to support WiFi-6 and 5G Sub-6 module
    • I/O support 1x PCIe Gen2, 1x USB3.1, 2x USB2.0 OTG/Host and 1x Giga Ethernet MAC
    • Support Android/ Linux Yocto/ Ubuntu OS

    MediaTek Genio 510

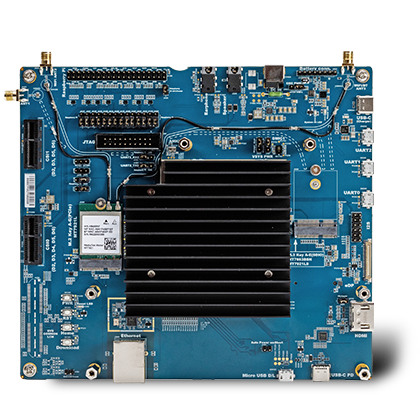

    MediaTek Genio 510 EVK

    The EVK board offers includes the following hardware and interfaces:

    • MediaTek Genio 510 SoC (MT8370)
    • 4GB of LPDDR4X
    • 64GB eMMC onboard
    • Wi-Fi 6 2x2 wireless connectivity
    • MIPI CSI Daughterboard with cameras
    • 2x USB 2.0 ports
    • 1x Micro SD card slot
    • 1x HDMI Tx port
    • 1x RJ45 Fast Ethernet
    • Raspberry Pi compatible 40-pin GPIO
    • a 7-inch Full HD LCM touch panel

    MediaTek Genio 510 SoC

    Built using an ultra-efficient 6nm process, this Edge AI platform incorporates a six-core (2x2.2 GHz Arm Cortex-A78& 4x2.0 GHz Arm Cortex-A55) CPU, Arm Mali-G57 MC2 GPU, integrated NPU (AI processor) and DSP into a single chip. An HEVC encoding acceleration engine ensures video captured via connected cameras can be encoded at up to Full HD resolution with minimum space used.

    Designed for products suitable for fanless enclosure designs and low-power solutions.

    • Smart Retail: Digital signage, desktop POS
    • Industrial: Edge AI, IoT gateway, HMI
    • Smart Home: Fitness, smart home
    learn more

    Specifications

    Application Processor (CPU)

    CPU

    2 x ARM Cortex A78, 2.0 GHZ

    CPU

    4 x ARM Cortex A55, 2.0 GHz

    Memory

    (Memory Speed/Type/RAM)

    4-channel LPDDR4X 3733Mbps up to 8GB

    Type

    eMMC 5.1

    AI Engine

    Tensilica VP6 MediaTek NPU 3.0, support multi-core model computing

    DSP

    DSP

    Tensilica HiFi5 DSP

    Display

    GPU

    GPU ARM Mali-G57 MC2, support OpenGL/CL/Vulkan

    Display Support

    Display support up to one 4K and one 2k

    Internal display interface

    MIPI-DSI/eDP

    External display interface

    HDMI/DP

    Video Encode & Decode

    Video Encode

    4K30, H.265/H.264

    Video Decode

    4K60, AV1/VP9/H.265/H.264

    Peripheral Interfaces (IO)

    PCLe

    1x PCIe Gen2 1-Lane

    Host/Host Device

    1x USB3.1 (Host/Device), 2 x USB 2.0 (Host/Device)

    Interfaces

    1x Giga Ethernet MAC; 1x SD/SHDC/MMC and SDIO3.0/3.0 4xUART, 6xSPI; 4xI2C

    Audio

    4xPWM, 5x I2S for Audio

    Wireless Connectivity (Wi-Fi/Bluetooth)

    Interface

    Through PCIe/USB2.0 interface

    Camera

    ISP/Recording Resolution

    Internal ISP for 32MP@30fps 2x MIPI CSI-2 4-Lane

    Package (Size)

    Type

    VFBGA, 15*15*0.9mm
