MediaTek Filogic 320

Wi-Fi 6 & Bluetooth 5.0 combo chip for consumer devices

MediaTek Filogic 320

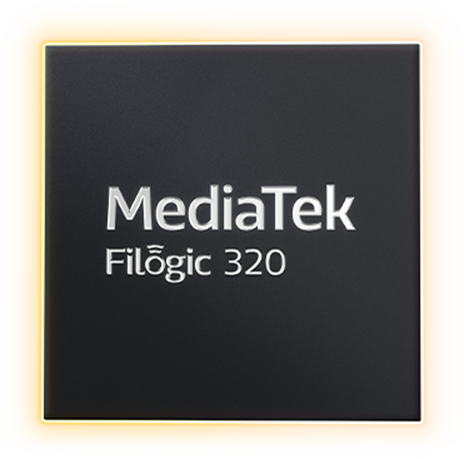

MediaTek Filogic 320 (MT7921P/T) is a single package Wi-Fi 6 and Bluetooth 5.0 combo solution enabling multi-gigabit networking in a wide range of consumer devices, with segment-leading power efficiency and performance.

The Filogic 320 includes a multi-protocol baseband, integrated MCU, and a simultaneous dual-band architecture (2.4GHz, 5GHz). When paired with a MediaTek Filogic Network Processing Unit or other application processor the platform can deliver multi-gigabit Wi-Fi speeds via its 2x2 antenna. Wi-Fi/Bluetooth co-existence enables both networking technologies to operate simultaneously, while Bluetooth 5.0 integration offers seamless wireless interaction with smartphones, tablets, personal devices and other smart home products.

Segment-leading Performance

Rx power consumption is reduced by as much as 60% compared to competitor alternatives, while also providing up to 2dBm greater reception sensitivity to enable up to 15% longer range connections.

Comprehensive Wi-Fi 6 Wave 1+ Feature-set

MediaTek Filogic 320 supports all optional Wi-Fi 6 Wave 1 features, including 1024QAM, UL/DL MU-MIMO, spatial reuse and long-range DCM.

EasyMesh Ready

MediaTek continues to advance the deployment of Wi-Fi Alliance EasyMeshTM certified products. The EasyMeshTM standard ensures product interoperability and provides a singular, easily manageable Wi-Fi network that can be extended as far as the deployment requires.

Specifications

Wi-Fi

IEEE 802.11

Wi-Fi 6 (a/b/g/n/ac/ax)

Wi-Fi Frequency

2.4GHz, 5GHz

Antenna

2T2R

Bluetooth

Bluetooth Version

5.0

Functions and Features

MAC

Yes

RF

Yes

BBP

Yes

BBP Feature

Dual band dual concurrent, MU-MIMO clients, support MCS rate up to 11, Wi-Fi Alliance Wi-Fi-6 Wave 1

Interfaces

PCIe Gen 2 and USB 2.0
