MediaTek Filogic 330

MediaTek Filogic 330

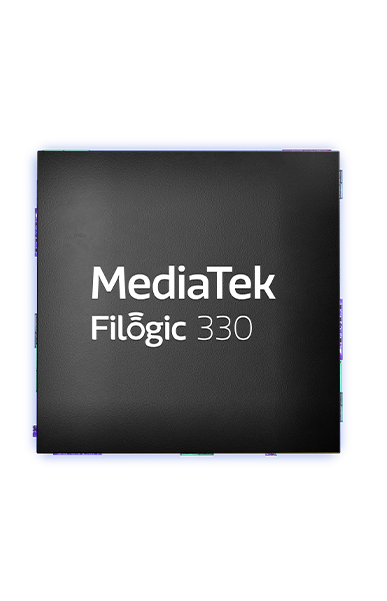

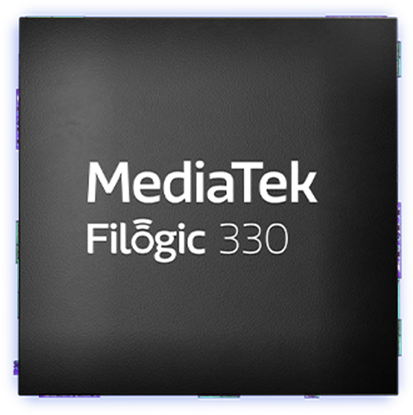

MediaTek Filogic 330 (MT7922) is a single-chip that integrates Wi-Fi 6/6E and Bluetooth 5.2 for connectivity in various consumer electronics devices and notebooks. Filogic 330 enables high-performance, highly-reliable, and power efficient connectivity solutions in the smallest form factor. For example, in the notebook market segment, Filogic 330 can fit in NGFF 1216 module size.

MediaTek Filogic 330 provides 2T2R Wi-Fi 6/6E connectivity for triple-band (2.4GHz, 5GHz, and 6GHz selectable) support, along with advanced Wi-Fi features such as DL MU-MIMO, MU-OFDMA, QoS, Wi-Fi security up to WPA3, and integrated Front-end Module (iFEM) support for LNA and PA functionality. Advanced Wi-Fi / Bluetooth coexistence ensures Wi-Fi connectivity remains reliable even when Bluetooth devices are also in use.

Specifications

Wi-Fi

IEEE 802.11

Wi-Fi 6 (a/b/g/n/ac/ax), Wi-Fi 6E (a/b/g/n/ac/ax)

Wi-Fi Frequency

2.4GHz, 5GHz, 6GHz

Antenna

2T2R

Data Throughput

Up to 1.9Gbps

Functions and Features

MAC

Yes

RF

Yes

BBP

Yes

BBP Feature

Dual band dual concurrent, MU-MIMO clients, support MCS rate up to 11, complete Wi-Fi Alliance Wi-Fi-6 Release 2 featureset

Interfaces

PCIe Gen 2 and USB 2.0
