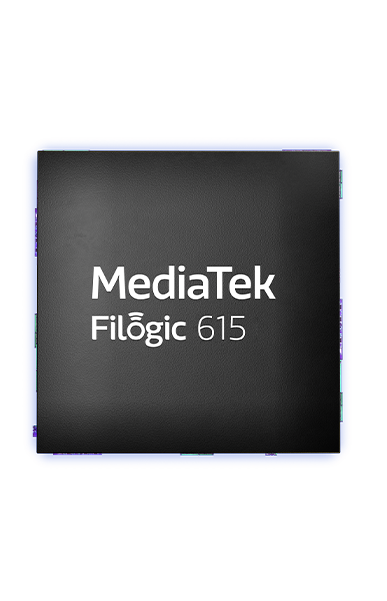

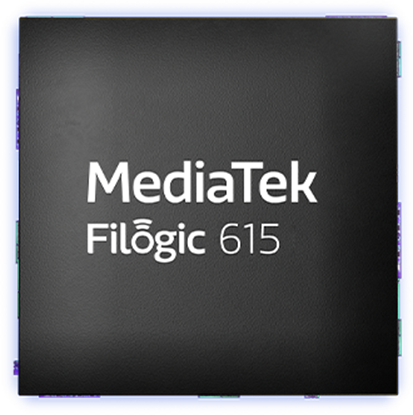

MediaTek Filogic 615

Multi-Gigabit 4X4 Wi-Fi 6 Wave 1+ Chipset

MediaTek Filogic 615 infuses exclusive, patented technologies and offers comprehensive Wi-Fi 6 Wave 1+ core feature coverage. The advanced chip includes a multi-protocol baseband, integrated MCU, and a simultaneous dual-band architecture and a dedicated RF receiver with ‘Zero-Wait DFS channel monitoring’ that brings faster, exceptionally reliable and easier-to-use connectivity. When paired with a MediaTek Network Processing Unit or other application processor the platform can deliver multi-gigabit Wi-Fi speeds using up to 4x4 antenna.

Exclusive Technologies

Patented features include MediaTek ESR (Enhanced Spatial Reuse) technology that improves the efficiency and capacity in a wireless network; and an enhanced internal FEM that improves connection efficiency by 60%, supplies better UL coverage versus competitor alternatives.

Comprehensive Wi-Fi 6 Wave 1+ Feature Coverage

MediaTek Filogic 615 supports all optional Wi-Fi 6 Wave 1 features, including 1024-QAM, UL/DL MU-MIMO, spatial reuse and long-range DCM.

Specifications

Wi-Fi

IEEE 802.11

Wi-Fi 6 (a/b/g/n/ac/ax)

Wi-Fi Frequency

2.4GHz, 5GHz

Antenna

4T4R

Functions and Features

MAC

Yes

RF

Yes

FEM

Yes

ePA/eLNA

Yes

BBP

Yes

BBP Feature

BBP Feature

MediaTek ESR, EasyMesh, Support for all Wi-Fi Alliance Wi-Fi 6 Wave 1+: 1024-QAM, UL/DL MU-MIMO, spatial reuse, long-range DCM,

Interfaces

PCI-Express 2.0, USB
