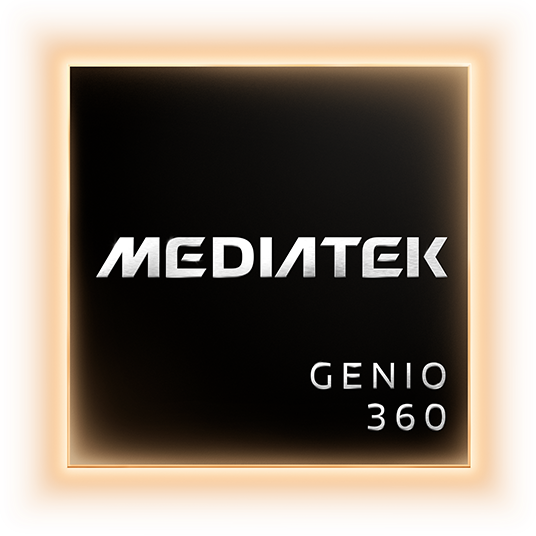

MediaTek | Genio 360 | Edge GenAI IoT Platform

Overview

The MediaTek Genio 360 is an advanced, 6nm, IoT platform that brings high-tier features to the value segment, featuring an advanced hexa-core CPU configuration consisting of a single Cortex-A76 big core and a 5-core Cortex-A55 configuration. The Genio 360 enables edge GenAI on models under two billion parameters, powered by an on-chip 8th generation MediaTek NPU capable of 5.1 TOPS. The platform enables a rich multimedia experience with support for a single 4K60 display or dual displays at FHD60 resolution, a single 16MP camera at 30fps and 4K video decode.

With a rich I/O capability including PCIe Gen2, USB 3.2 Gen1, dual USB 2.0 and GbE MAC (TSN) interfaces available, a wide variety of system expansion is possible. Offering support for Android, IoT Yocto, and Ubuntu OS, Genio 360 allows for a wide range of consumer, industrial and enterprise applications. Guaranteed longevity of supply for 10 years and both commercial & industrial temperature ranges round out the support for intelligent embedded solutions.

Key Features

High Performance Computing

1x Arm Cortex-A76 @ 2.0 GHz, 5x Arm Cortex-A55 @ 2.0 GHz, delivers efficient edge performance in 6nm process technology.

Edge GenAI Processing

Integrated 8th Gen NPU delivers 5.1 TOPS for efficient real-time inferencing of LLMs and transformer models.

Balanced Camera Capabilities

Single ISP supports 16MP or 6x FHD camera, ideal for AI-edge use in compact or cost-sensitive devices.

High-Resolution Display Support

Enable up to single 4K60 or dual FHD60 displays with advanced video encoding/decoding.

Flexible Expansion and Integration

Support for PCIe Gen2, USB 3.2, USB 2.0 and GbE simplifies system design and peripheral integration.

Operating Systems

Supports Android, Yocto Linux and Ubuntu.

Product Specification

Process

6nm

Processor

Processor (CPU)

[Genio 360) Consumer
1x Arm Cortex-A76 (2.0GHz)
5x Arm Cortex-A55 (2.0GHz)

[Genio 360] Industrial
1x Arm Cortex-A76 (1.9GHz)
5x Arm Cortex-A55 (1.7GHz)

[Genio 360P] Consumer
2x Arm Cortex-A76 (2.0GHz)|
6x Arm Cortex-A55 (2.0GHz)

[Genio 360P] Industrial
2x Arm Cortex-A76 (1.9GHz)
6x Arm Cortex-A55 (1.7GHz)|

Graphics Processor (GPU)

Arm Mali-G57 MC2 (700 MHz)
OpenGL ES 3.2, Vulkan 1.1, OpenCL 2.0

Neural Processing Unit (NPU)

MediaTek 8th-Gen NPU
(1x MDLA5.3, GenAI)

[Genio 360] 5.1 TOPS

[Genio 360P] 7.4 TOPS

Memory and Storage

Memory and Type

x32 LP4X-3733 (up to 8GB)

Storage Type

eMMC5.1

SD 3.0

SPI-NOR

Multimedia

Display Interface

1x MIPI-DSI (4L, 2.5Gbps/L) / LVDS

1x MIPI-DSI (4L, 2.5Gbps/L)

1x DP1.4/eDP1.2 (4L)

Display Controller

Dual Display, Max. FHD60+FHD60

Single Display, Max. 4K60

(Support PQ)

Video-in Interfaces

2x MIPI-CSI (4L)

(Virtual channel: Up to 6x FHD30)

Image Signal Processor

1x ISP (3A, NR, AI-FD, LSC)

Single camera: 16MP @ 30fps

Video Decode

H.264/H.265/VP9 (4K30)

Video Encode

H.264/H.265 (FHD90)

Interfaces

USB

2x USB 2.0 (Host)

1x USB 3.2 Gen1 (Host)

Ethernet

1x GbE MAC (TSN)

PCIe

1x PCIe 2.0 (1L, RC, WoWLAN)

CAN

1x CAN-FD

UART

4x UART

I2C

8x I2C, 2xI2C/I3C

SPI

6x SPI Master

PWM

3x PWM

I2S/TDM

2x I2S/TDM input

2x I2S/TDM output

PDM

4x PDM input

PCM

1x PCM input/output

Temperature Support

Temperature

Consumer: -20°C to 95°C (Tj)

Industrial: -40°C to 105°C (Tj)

Package Information

Package Type

VFBGA

Package Dimensions

12.2mm x 13.4mm x 0.9mm, 0.4mm ball-pitch

Wireless Connectivity

Integrated Wi-Fi Baseband

WiFi-5 1x1/Bluetooth 5.3 (MT6631)

Security

ARM TrustZone

Security Boot (RSA4096)

Crypto Engine

RNG
