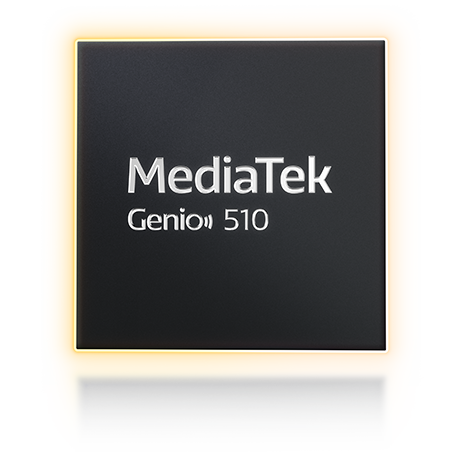

MediaTek Genio 510

• Leading 6nm chip design
• Six-core CPU including 2x Super Cores: ARM Cortex-A78 and 4x Efficiency Cores: ARM Cortex-A55
• Up to 4GB of quad-channel memory

• SMARC 2.1.1 Form Factor
• Onboard 4/8GB LPDDR4 /16GB eMMC
• Optional Wi-Fi 6 and Bluetooth 5.3
• 1 x GbE, 1x CAN, 4x UART, TPM integrated
• 1 x USB 3.1, 2 x USB 2.0
• Optional Wi-Fi +BT5.0
• Optional carrier board with Rich I/O feature set

• Onboard 4GB LPDDR4 /16GB eMMC or 8GB LPDDR4 /16GB eMMC
• Optional Wi-Fi 6 and Bluetooth 5.3
• Onboard ethernet PHY's and USB hub controller
• Commercial (0° to +70 °C) or Industrial (-40° to +85 °C) versions
• SMARC 2.1.1 Form Factor SOM 82mm x 50mm SMARC edge connector
• Assembled in the USA

Specifications

• Processing 6-core CPU (2x A78 @ 2.2GHz + 4x A55 @ 2.0GHz), Mali-G57 GPU, APU3.0
• Memory & Flash Up to 8GB LPDDR4X (3733Mbps), 16GB eMMC storage
• Connectivity Wi-Fi 802.11ac (2x2 MIMO), Bluetooth 5, Gigabit Ethernet
• I/O & Expansion HDMI, MIPI DSI, USB-C (3.1 & serial), USB-A x2, 40-pin GPIO
• Multimedia 32MP camera support, H.265 decode 1080p@60fps, H.264 encode 1080p+720p@30fps

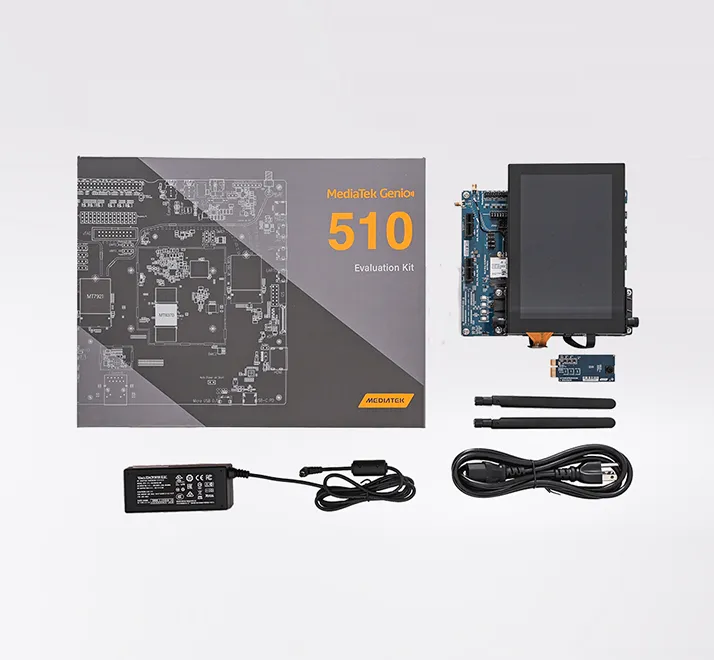

• Formfactor 95 x 115MM Single Board Computer/Eval Kit
