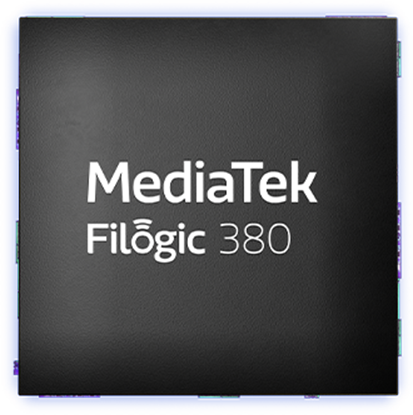

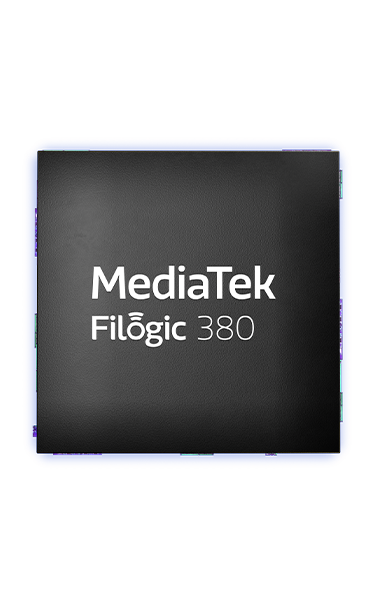

MediaTek Filogic 380
For smartphone, tablet, laptop, PC, wearable or other devices that require the fastest wireless connectivity, MediaTek Filogic 380 is the solution for the latest in Wi-Fi 7 and Bluetooth technology. This single-chip Wi-Fi 7 and Bluetooth 5.3 client combo solution delivers truly exceptional performance and is packed with advanced features. Filogic 380 is also built on a 6nm production process, making it also exceptionally power efficient.
Comprehensive Wi-Fi 7 Features
Users will benefit from peak Wi-Fi 7 speed of up to 6.5Gbps via support for dual-band, dual-concurrent operation. The advanced chip includes the latest Wi-Fi 7 technologies such as 360MHz bandwidth support, 4096-QAM, MLO, and MRU.
Bluetooth 5.4 with Effective Coexistence Technology
Bluetooth 5.4 connectivity is enhanced with an extra receive antenna for extra receive diversity and MRC (Multiple Receive Combining) support to improve performance and range. To further enhance speeds, Filogic 380 also support HDT (High Data Throughput). Bluetooth LE audio is also supported for wireless headsets, ensuring reliable stereo audio with the best quality and lowest latency. MediaTek’s advanced Bluetooth/Wi-Fi coexistence technology ensures both technologies can operate on the 2.4GHz band seamlessly, without interference.
Integrated Processing & Advanced Interfaces
A system control/IO processor plus on-chip memory offloads the main application processor. Device makers can opt for either PCI-Express 4.0 or USB 3.0 connectivity options.
Specifications
Wi-Fi
IEEE 802.11
Wi-Fi 7 (a/b/g/n/ac/ax/be)
Wi-Fi Frequency
2.4GHz, 5GHz, 6GHz
Antenna
dual-band, dual-concurrent: 2x2 + 2x2
Max Throughput
Up to 6.5Gbps
Bluetooth
5.4, LE Audio
Single-chip with RF+Baseband+MAC
Yes
Functions and Features
Wi-Fi and Bluetooth Features
- Wi-Fi 7: Dual-band, dual concurrent, up to 320MHz BW, 4096-QAM, MLO, MRU
- Bluetooth 5.4: LE Audio, extra antenna for MRC, HDT
- Bluetooth and Wi-Fi coexistence
Interfaces
PCI-Express 4.0 or USB 3.0
