MediaTek

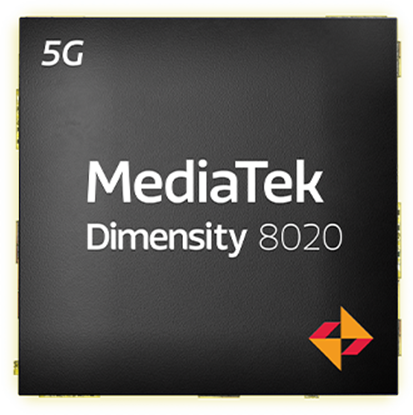

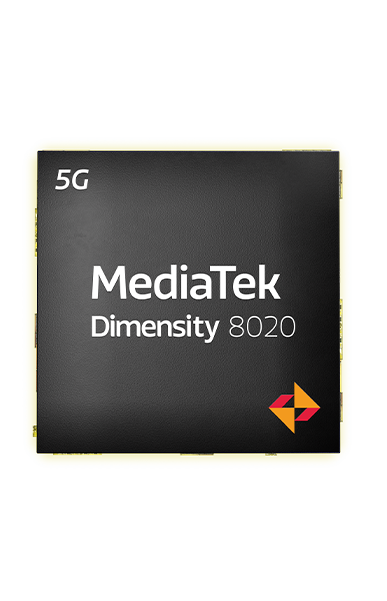

Dimensity 8020
MediaTek Tablets
Awesome Gaming Performance
Featuring an octa-core CPU with four performance Arm Cortex-A78 processors with peak speeds up to 2.6GHz, and a powerful nine core GPU, there’s plenty of performance for awesome gaming experiences. This processing power is fueled by ultra-fast quad-channel memory and dual-channel UFS 3.1 storage. Enjoy gaming experiences with HDR and reliably fast FPS in top titles.
- 4X Performance Cores: Arm Cortex-A78 up to 2.6GHz
- 4X Efficiency Cores: Arm Cortex-A55 up to 2GHz
- 9X Powerful Core: Arm Mali-G77 GPU
Additional Key Features
Capture night shots 20% faster than previous generation Dimensity series. Engaging the multicore MediaTek NPU 570 enables unprecedented accuracy with AI Super Panorama that uses multi-shot photo stitching combined with AI Noise Reduction, AI Exposure and AI Object Tracking to produce the most stunning panoramic images ever.
Capture 40% greater dynamic range in videography with ‘staggered’ 4K HDR that records the detail of three images per frame of footage. Accurate scene segmentation with multi-person bokeh in video capture allows users to produce eye-catching cinematic group films that are great for sharing.
- 4K HDR Video with 3-Exposure Fusion
- AI Super Panorama
- AI Multi-Person Bokeh Video
- Multi-Depth Smart Focus Video
- AINR + HDR Photo
MediaTek MiraVision enhances HDR video playback to bring cinema-grade visual experiences to the small screen.
- AI Picture Quality
- Enhanced HDR10+ Video Playback
- Hardware accelerated AV1 video decoding
With real-time scene analysis and dynamic picture quality adjustment in every frame, AI SDR-to-HDR can upgrade a standard video stream into vibrant HDR in real-time with 29% greater dynamic range.
Device makers can design their latest tablets with ultra-fast, high resolution displays, giving gamers a competitive edge.
Even non-gamers will note the faster response is also beneficial to the everyday experience with notably smoother scrolling of web pages, social streams, and animations in apps.
Benefit from whole device enhancements that give gamers intelligent performance and power-efficiency boosts, putting them a click ahead of competitors.
- MediaTek Framerate Smoother (FRS) 1.0
- Wi-Fi / Bluetooth Hybrid Coexistence 2.0 - up to 60% latency reduction compared to non-hybrid designs while using Bluetooth accessories like earbuds or gamepads
- Dual 5G SIM Call and Data Concurrency 3.0
- Specialized 5G awareness – Faster 5G recovery and HSR modes
- Super Hotspot Power Saving
Faster 5G Carrier Aggregation
With 2CC-CA (200MHz) including mixed duplex FDD+TDD, devices can combine low and mid-band advantages for higher speeds and greater reach. 5G-CA enables higher average speeds and a seamless handover between two 5G connection areas across a coverage layer, where users receive over 30% greater throughput layer coverage than without CA.
Dual 5G SIM
Giving users more choice with dual 5G SIM (SA+SA), with support for premium VoNR voice and video call services from both connections.
MediaTek 5G UltraSave
The advanced 5G modem is fully integrated into this ultra-efficient, 6nm chip, and combined with MediaTek 5G UltraSave means the chip is enhanced with even more 5G power-saving technologies.
When dual-band GNSS is unavailable, such as underground or in urban valleys, MediaTek’s sensor fusion technology provides extended, accurate dead reckoning location performance to ensure users always know where they are.
Using the advanced TSMC N6 (6nm-class) chip production process extends battery life, even for demanding users. Its highly power-efficient design enables device makers to create attractive, slim and light 5G tablets with incredible performance that lasts longer than ever.
Specifications
Processor
CPU
- Arm Cortex-A78 @ up to 2.6GHz
- Arm Cortex-A55 @ up to 2GHz
Cores
Octa (8)
CPU Bit
64-bit
Heterogeneous Multi-Processing
Yes
Memory & Storage
Memory Type
LPDDR4x
Max Memory Frequency
4266Mbps
Max Memory Size
16GB
Storage Type
UFS 3.1
Display
Max Display Resolution
2560 x 1600
Max Refresh Rate
120Hz
Graphics
GPU Type
Arm Mali-G77 MC9
Video Encoding
- HEVC
- H.264
Video Playback
- AV1
- HEVC
- H.264
- VP-9
Connectivity
Cellular Technologies
2G / 3G / 4G / 5G Multi-Mode, 4G Carrier Aggregation (CA), 5G Carrier Aggregation (CA), CDMA2000 1x/EVDO Rev. A (SRLTE), EDGE, 4G FDD / TDD, 5G FDD / TDD, GSM, TD-SCDMA, WDCDMA
Specific Functions
SA & NSA modes; SA Option2, NSA Option3 / 3a / 3x, NR TDD Band, NR FDD Band, DSS, NR DL 2CC, 200 MHz bandwidth, 4x4 MIMO, 256QAM NR UL 2CC, 2x2 MIMO, 256QAM VoNR / EPS fallback
Peak Downlink Speed
4.7Gbps
Peak Upload Speed
2.5Gbps
GNSS
- GPS L1CA+L5
- BeiDou B1I+ B2a
- Glonass L1OF
- Galileo E1 + E5a
- QZSS L1CA+ L5
- NavIC
Wi-Fi Antenna
2T2R
Wi-Fi
Wi-Fi 6E (a/b/g/n/ac/ax)
Bluetooth
5.2
Camera
Max Camera ISP
- 108MP
- 32MP + 16MP
Max Video Capture Resolution
3840 x 2160
Camera Features
HDR-ISP (3+2) / Video HDR / Video NR / Video Bokeh / Video EIS / AI-Shutter / AI-AE / AI-AF / AI-AWB / AI-NR HDR / AI-HDR / AI-FD
