    MediaTek
    MT8766

    Entry-Level 4G IoT Platform with Enhanced Multimedia, Connectivity, and Power Efficiency

    MT8766 Hero Banner
    MT8766 Hero Banner Mobile

    Overview

    The MediaTek MT8766 is a 4G/LTE entry IoT platform built on advanced 14nm process technology, offering high efficiency, multimedia capability, and reliable global connectivity. Powered by a quad-core Arm® Cortex®-A53 CPU @2.0GHz and an Imagination GE8300 GPU, it delivers strong performance for multimedia-rich and always-connected devices.

    Supporting FHD+ @60Hz and dual-camera up to 21MP, with 1080p30 video encode and decode, making it ideal for smart displays, POS systems, and industrial IoT devices. Integrated 4G/LTE Cat-4 modem, Wi-Fi 5, Bluetooth 5.0, and multi-constellation GNSS ensure comprehensive connectivity for a wide range of IoT applications.

    Key Features

    Design Flexibility-1

    Design Flexibility

    Highly integrated platform combining CPU, GPU, modem, connectivity, and multimedia reduces external components, simplifies design, and lowers system cost.

    Future-Proof Connectivity

    Future-Proof Connectivity

    Built-in 4G/LTE Cat-4 modem with global operator interoperability ensures fast, proven connectivity for IoT and smart device deployments worldwide

    Seamless Expansion and Connectivity

    Seamless Expansion and Connectivity

    Integrated Wi-Fi 5, Bluetooth 5.0, and multi-GNSS (GPS, GLONASS, Beidou, Galileo) enable seamless wireless and location capabilities across global networks

    Power‐Efficient Premium Design-1

    Power-Efficient Architecture

    Manufactured on an advanced 14nm process, providing optimized power efficiency, reduced thermal output, and extended battery for portable and embedded devices

    Multimedia(1)

    Advanced Multimedia Capabilities

    Supports FHD+ (1920×1200) @60Hz, dual-camera up to 21MP enabling sharp visuals and smooth playback for display- and camera-driven IoT solutions

    Longevity - Support

    Ecosystem and Longevity Support

    With proven Android OS support and a 7-year lifecycle, it ensures reliable, long-term availability and platform stability for connected device manufacturers

    Block-Diagram--MT-8766

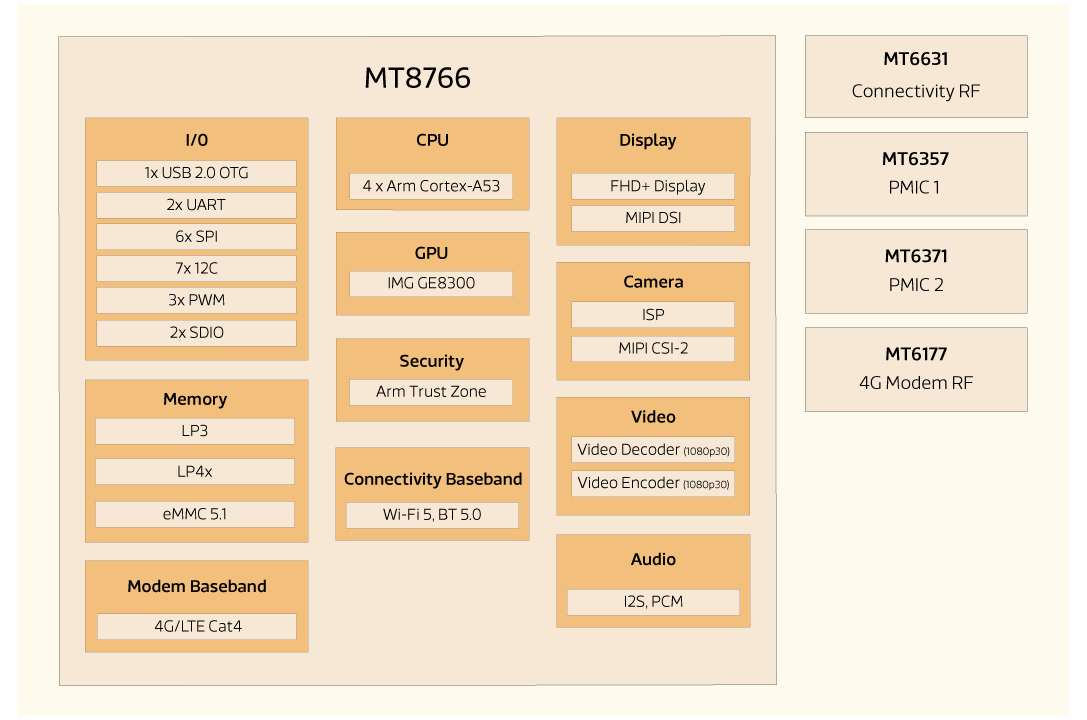

    Block Diagram

    Product Specification

    Process

    14nm

    CPU

    4x Arm Cortex-A53, 2.0GHz

    GPU

    IMG GE8300 @ 660 MHz

    Memory

    1x LP3 933MHz, up to 4GB

    2xLP4x 1600MHz, up to 4GB

    Camera

    21MP @ 30fps

    Video Decode

    1080p @ 30fps, H.264/H.265

    Video Encode

    1080p @ 30fps, H.264

    Display

    FHD+ (1920x1200) @60Hz

    HD+ (1480x800) @60Hz

    Connectivity

    Integrated Wi-Fi 5 + BT 5.0 + multi-GNSS
    External MT6631 RF

    Modem

    4G/LTE Cat-4
