MediaTek MT8863

    A high‑end 5G IoT platform that offers superb performance with outstanding power‑efficiency from a highly integrated 6nm SoC. Device makers can take advantage of a highly responsive 120Hz display ideal for HMI, 2K multimedia engine, super‑high resolution camera support and USB 3.0 dual mode for extensibility. 5G 3GPP R16 modem provides advanced cellular features.

    Platform Highlights

    • Powerful octa‑core CPU with 4X big cores
    • Tri‑core GPU
    • Up to 4K video decoding
    • FHD video encoding
    • Internal ISP with low power 3x CSI
    • WUXGA 60fps display
    • global LTE with carrier aggregation and dual SIM, dual standby
    • GNSS

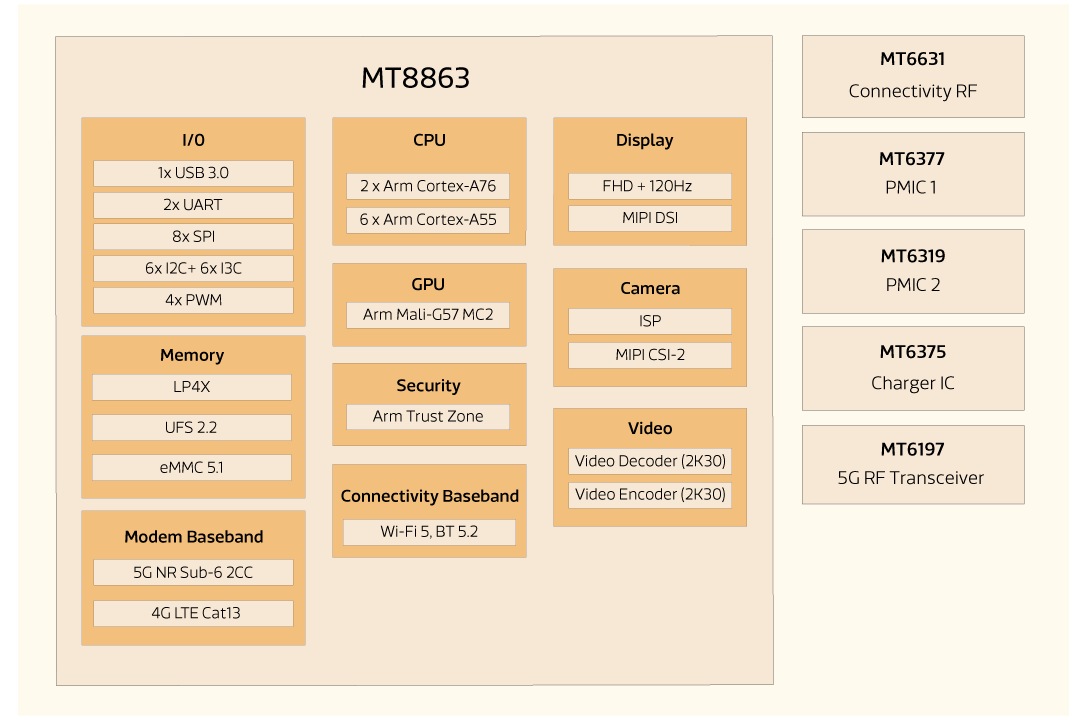

    Specifications

    Process

    N6

    CPU

    2*A76 2.4GHz
    6*A55 2.0GHz

    GPU

    ARM Mali-G57 MC2

    Memory

    UFS2.2, eMMC5.1
    2xLP4x-4266

    Camera

    108MP non-ZSL
    16MP+16MP@30fps

    AI

    C+G

    Video

    2k30 / 2K30

    Display

    FHD+ 120Hz

    Conn.

    Int WiFi5 1T1R, BT5.2
    GNSS L1+L5

    Modem

    R16, 5G 2CC 140MHz
    4G Cat13

    IO

    USB3.0 Dual mode x1
