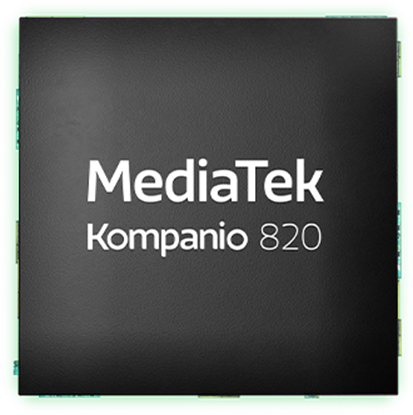

MediaTek Kompanio 820

Power-Efficient 7nm Chip for Highly Capable Mobile Computing Platforms

MediaTek Kompanio 820

The MediaTek Kompanio 820 (MT8192) is designed to enable excellent portable computing experiences. This power-efficient 7nm chip integrates a wealth of high-performance features, allowing brands to create highly capable devices that flip, fold, or detach, while also being attractively slim and light, and with great battery life.

Productivity gets a performance boost thanks to an octa-core CPU with four ‘big’ Arm Cortex-A76 cores that provide a highly responsive system and apps, while four Arm Cortex-A55 power efficiency-focused cores can simultaneously handle background tasks.

Fast LPDDR4X and UFS storage can easily feed its high-performance CPUs and GPUs with fast streams of data, resulting in a multi-threaded performance advantage of up to 60% compared to competitor alternatives.

For gamers, its five-core Arm-Mali G57 GPU provides vivid visuals and great experiences, while game streaming services can take advantage of Bluetooth 5 peripherals and Wi-Fi co-existence that keeps all connections reliable.

The integrated MediaTek APU 2.0 provides nearly 5X more performance than the previous generation at 2.4TOPs. This multi-core AI processor can work with the inbuilt cameras and microphones to enrich a wide range of voice and vision-based applications such as voice ID recognition and voice control, speech and image recognition, speech to text, live translation, object recognition, background removal, noise reduction, image and video segmentation, gesture control and Google AR Core-based enhancements, all in real-time.

A dedicated audio DSP enables ultra-low power voice on wake up (VoW) for voice assistants, while its HDR-ISP and hardware depth engine enables impressive simultaneous dual camera experiences.

Brands can opt for high resolution dual cameras up to 16 MP + 16 MP, which, combined with its powerful AI processor and 4K HDR video encoder, enables extremely precise, real-time background segmentation that’s ideal for video conferencing or vlog streaming with soft or custom backgrounds.

Devices can use sharp WQHD displays with standard 60Hz refresh-rates, or Full HD+ displays with fast 120Hz refresh-rate for incredible responsiveness. Support for a second Full HD display gives users a productivity boost with more screen real-estate. 4K HDR video decoding means watching movies and video uses minimal battery life, allowing users to watch their favorite shows for longer.

PCI-Express Gen 3 and USB 3.2 Gen 1 enables expansion and customization potential for brands to differentiate their device designs.

Specifications

Processor

Processor Clusters

4x Arm Cortex-A76 cores operating up to 2.2 GHz
4x Arm Cortex-A55 cores

CPU Cores

Octa (8)

Memory & Storage

Memory

LPDDR4X

Max Memory Frequency

2133MHz

Storage Type

eMMC 5.1, UFS 2.1

Graphics

GPU Type

Arm Mali-G57 MC5

Display Resolution

  • 2x 1920 x 1080
  • 1x 2560 x 1440

Video Encode

  • H.264
  • HEVC

Video Decode

  • H.264
  • HEVC
  • VP-9

Connectivity

Connectivity

  • Bluetooth
  • Wi-Fi
  • GNSS: GPS, Glonass, BeiDou, Galileo, QZSS

Wi-Fi

Wi-Fi 5 (a/b/g/n/ac)

Wi-Fi Frequency

  • 2.4GHz
  • 5GHz

Camera

Max Camera Sensors

  • 32MP
  • 16MP + 16MP

Max Video Capture Resolution

3840 x 2160

AI

AI Accelerator

Yes

Performance

2.4 TOPs
