MediaTek
Dimensity 6300
Empowering 5G tablets with faster games, impressive cameras
MediaTek Tablets

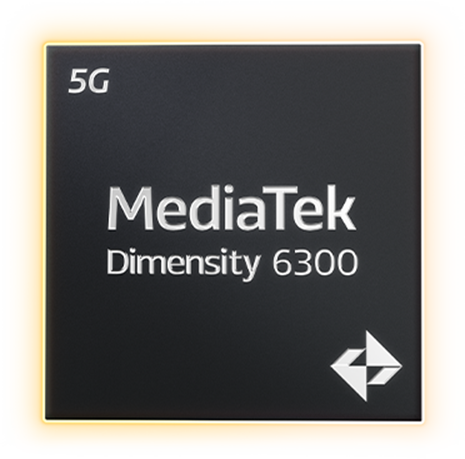

MediaTek Dimensity 6300
A highly power efficient tablet chip with 3GPP Release 16 standard 5G modem, with support for 108MP cameras sensors and faster games with MediaTek HyperEngine.
108MP Cameras with Enhanced Noise Reduction
Native support for 108MP camera sensors provides impressively detailed photos. Pre-integrated multiframe noise reduction delivers a stable, clear image in low-light conditions.
Additional Key Features
With CPU speeds upgraded to reach 2.4GHz, users can enjoy up to 10% faster gaming than the previous generation, and over 50% GPU performance advantage versus competitor alternative platforms.
MediaTek HyperEngine gaming technologies imbue whole device gaming enhancements that extend gameplay through up to 11% power-efficiency enhancements, up to 13% greater FPS in demanding gameplay scenes, intelligent connection prediction between 5G and Wi-Fi, 5G Call/Data concurrency, and more reliable connectivity to ensure gamers always stay connected.
See contour-free true colors with billion color displays, and true color AMOLED, that can display real 10-bit images and videos, enhancing the user experience. Display speeds can reach 120Hz, which helps reduce visual fatigue, and provides a supremely smooth user experience, such as page scrolling and animations in apps.
Using the TSMC 6nm-class chip production process ensures an extended battery life, even for demanding users. MediaTek’s engineering innovations have also created a more compact platform that gives device designs more freedom in their product creations.
The Dimensity 6300 features a 3GPP Release-16 standard 5G modem, including the latest connectivity enhancements now deployed by global cellular operators. Device designers can create a single tablet design for global cellular markets without, significantly reducing costs and accelerating global rollout.
MediaTek 5G UltraSave 3.0+
MediaTek 5G UltraSave 3.0+ includes a complete suite of R16 power saving enhancements, plus MediaTek’s own optimizations that results in 13-30% greater power efficiency compared to competitor alternatives in common 5G sub-6GHz connectivity scenarios.
Faster 5G that Reaches Further
Addressing a maximum of 140MHz cellular spectrum enables up to 3.3Gb/s 5G downlink via 2CC carrier aggregation – up to 40% faster downlink speeds within urban environments, and up to 30% in suburbs, versus competitor alternatives. CA can apply mixed duplex FDD+TDD combining low and mid-band advantages, devices can access faster speeds and greater reach. Carrier aggregation also enables a seamless handover between two 5G connection areas across a coverage layer, where users receive over 30% greater throughput layer coverage than without CA.
Situationally Intelligent Enhancements
When travelling on high-speed rail, subway or travelling in vehicle underground, MediaTek’s 5G modem recognizes the connection environment and applies situationally intelligent enhancements designed to provide 20% more effective downlink speeds compared to competitor alternatives.
LB+LB ENDC and 8-layer DL MIMO Support
Support for the latest cellular operator requirements such as dual, low-band ENDC and 8-layer DL MIMO help to ensure future-proofing.
Specifications
Processor
CPU Type(s)
- 2X Arm Cortex-A76 up to 2.4GHz
- 6X Arm Cortex-A55 up to 2.0GHz
Cores
Octa (8)
CPU Bit
64-bit
Heterogeneous Multi-Processing
Yes
Memory & Storage
Memory Type
LPDDR4x
Max Memory Frequency
2133MHz
Storage Type
UFS 2.2
Graphics
GPU Type
Arm Mali-G57 MC2
Camera
Max Camera ISP
- Native 108MP
- 16MP + 16MP
Display
Max Display Resolution
1200 x 2000
Max Refresh Rate
Up to 120Hz
Connectivity
Cellular Technologies
2G / 3G / 4G / 5G Multi-Mode, 4G Carrier Aggregation (CA), 5G Carrier Aggregation (CA), EDGE, 4G FDD / TDD, 5G FDD / TDD, GSM, TD-SCDMA, WDCDMA
Specific Functions
SA & NSA modes; SA Option2, NSA Option3 / 3a / 3x, NR TDD Band, NR FDD Band, DSS, NR DL 2CC, 140 MHz bandwidth, 256QAM NR UL 2CC, 256QAM VoNR, Dual VoNR, Dual 5G SIM, EPS fallback
Peak Download Speed
3.3Gbps
GNSS
- GPS L1CA+L5
- BeiDou B1I+ B2a
- Glonass L1OF
- Galileo E1 + E5a
- QZSS L1CA+ L5
- NavIC
Wi-Fi Antenna
1T1R
Wi-Fi
Wi-Fi 5 (a/b/g/n/ac)
Bluetooth
5.2
