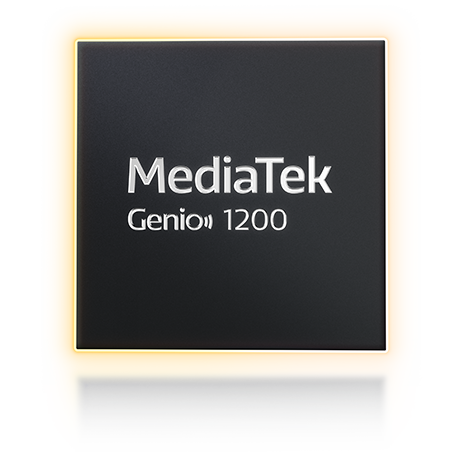

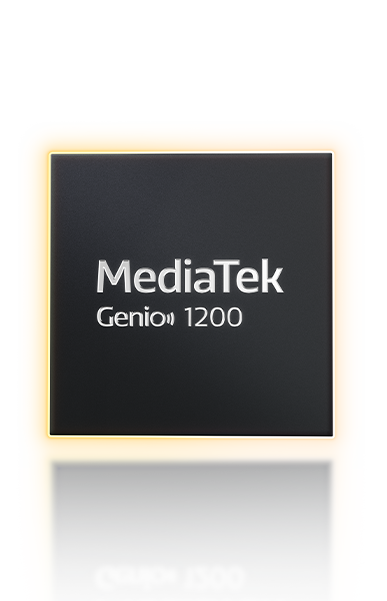

    MediaTek Genio 1200

    MediaTek Genio 1200 is a premium IoT SoC with integrated NPU. It provides superb performance, advanced multimedia and impressive power efficiency to meet wide ranging edge computing requirements. Its offers flexible, high-speed I/O and supports GbE and Wi-Fi 6 connectivity.

    Platform Highlights

    • Highly efficient 6nm chip design
    • Octa-core CPU including 4x big core processors
    • NPU ready for edge AI
    • Up to 16GB of quad-channel memory
    • High-end Penta-core GPU
    • Dual 4K display and HEVC enc/dec
    • Dedicated audio DSP
    • High resolution camera and simultaneous dual camera support with internal ISP
    • Dual-band Wi-Fi 6
    • Flexible I/O
    • Supports Android, Yocto, Ubuntu OS

    Specifications

    CPU

    Processors

    • 4X Arm Cortex-A78 @ 2.2 GHz
    • 4X Arm Cortex-A55 @ 2.0 GHz

    Memory

    Speed/Type

    • Up to 16GB, quad-channel LPDDR4X @ 4266Mbps

    AI

    Type

    • Integrated multi-core NPU

    Audio

    DSP

    • HiFi 4

    GPU

    Type

    • Arm Mali-G57 MC5 @ 880MHz

    Display

    Resolution

    • 2x 4K60
    • Dual active displays

    Video

    Encoding

    • 4K60, H.265/H.264

    Decoding

    •  4K90, AV1/VP9/HEVC/H.264

    Peripheral Interfaces

    IO

    • 1x PCIe Gen3 2-Lane 1x PCIe Gen2 1-Lane (share with 1x USB3.1) 2x USB 3.1 (Host) 2x USB 2.0 (Host/Device) 1x Giga Ethernet MAC 1x SD/SHDC/MMC and SDIO3.0/3.0 6xUART, 6xSPI, 6xI2C, 4xPWM, 2x I2S for Audio

    Wireless Connectivity

    Wi-Fi/Bluetooth

    • Up to Wi-Fi 6, BT 5.2
    • Enabled via PCIe or USB 2.0 interface

    Camera

    ISP

    • Internal ISP
    • 48MP @ 30fps
    • 16MP+16MP @ 30fps
    • 3x MIPI CSI-2 4-Lane

    Package

    Type/Size

    • MFC VFBGA, 15*15*0.9mm
