    MediaTek Genio 350
    at-a-glance

    VIEW WIKI Arrow Right

    Learn more about
    MediaTek Genio 350

    LEARN MORE Arrow Right

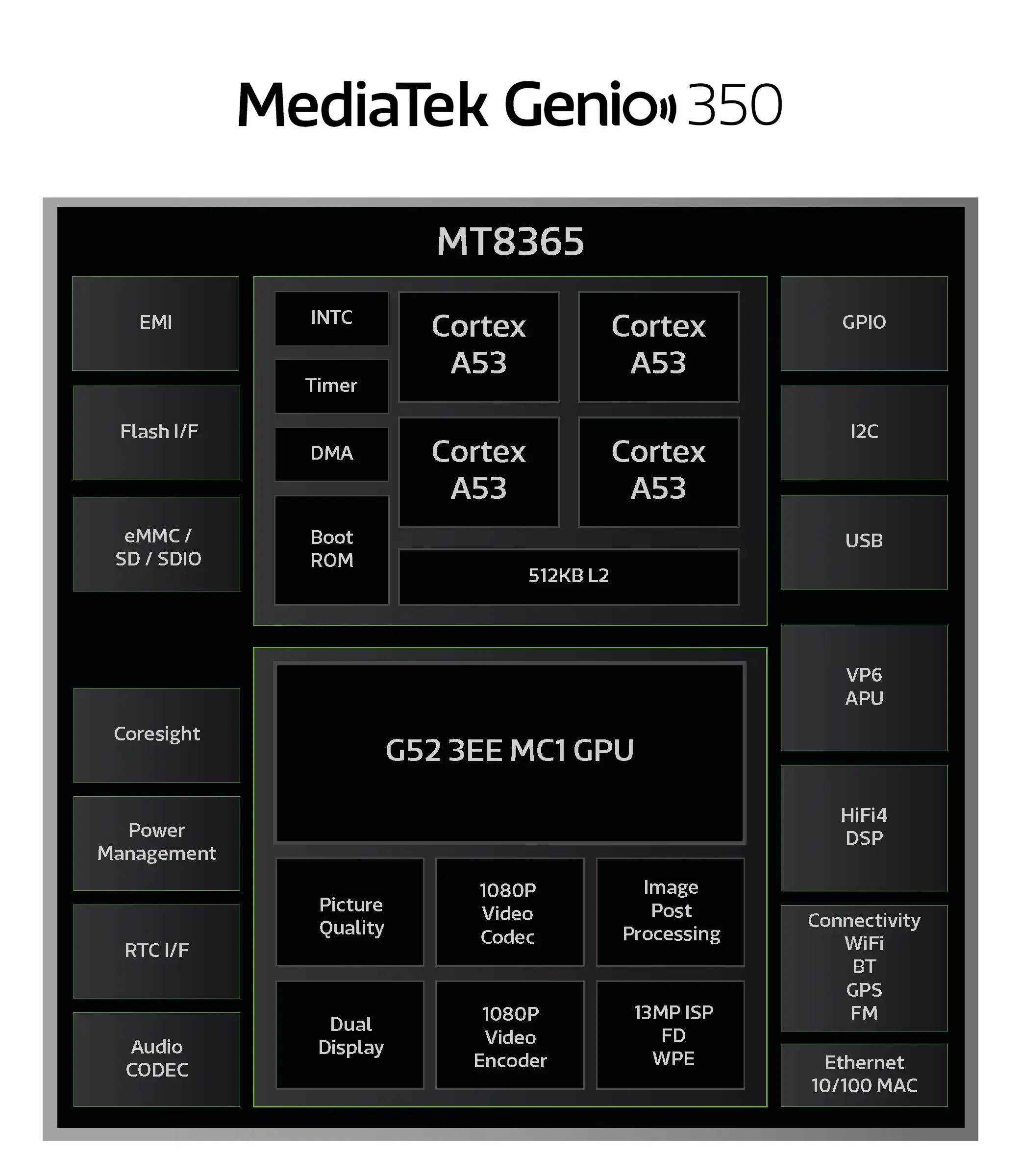

    Mediatek Genio 350 block diagram

    DEVELOPMENT KITS Arrow Right

    View Genio 350 Dev Kits

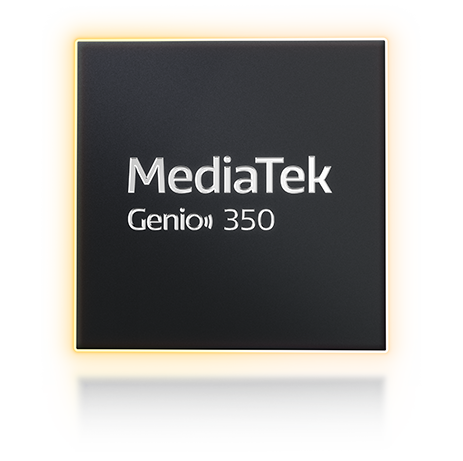

    MediaTek Genio 350

    Competitive edge IoT platform with capable computing performance and support for light-AI applications. Power-efficient processing supports fanless and battery-powered products. Integrated visual AI processing and dedicated audio DSP make it ideal facial and audio recognition with fast response. Multitasking OS availability, plus a highly capable CPU and GPU, enable it to smoothly run rich apps and interfaces.

    Platform Highlights

    • Capable quad-core CPU
    • Supports dual display
    • Visual AI processor
    • Dedicated audio DSP
    • Rich audio interfaces for multiple microphones and speakers
    • Flexible memory support
    • 13MP @ 30fps camera support
    • Dual-band Wi-Fi 5
    • Extremely power efficient 14nm SoC ideal for battery-powered applications
    • Android, Yocto, Linux, Ubuntu OS support

    Specifications

    CPU

    Processors

    • 4X Arm Cortex-A53, 2.0 GHz

    AI

    NPU

    • Tensilica VP6

    Memory

    Type/Speed

    • DDR3/LPDDR3 @ 1866Mbps
    • DDR4/LPDDR4/LPDDR4X @ 3200Mbps

    Storage

    Type

    • eMMC 5.1,
    • SLC/MLC/TLC RAW

    GPU

    Type

    • Arm Mali-G52, 800 MHz
    • Support for OpenGL, OpenCL, Vulkan

    Audio

    DSP

    • Tensilica HiFi4

    Display

    Resolution

    • FHD+
    • Dual display support

    Video

    Decoding

    • FHD60, HEVC/H.264/VP9

    Encoding

    • FHD60, HEVC/H.264

    Peripheral Interfaces

    IO

    • USB 2.0 OTG x 1 + Host x 1, 10/100 Ethernet MAC SD/SHDC/MMC and SDIO2.0/3.0 3xUART, 1xSPI_M, 4xI2C, 3xPWM, I2S for Audi

    Wireless Connectivity

    Type

    • Wi-Fi 5 1x1 / BT 5.0 (MT6631)
    • Wi-Fi 5 2x2 / BT 5.1 (MT7663)

    Camera

    ISP/Recording Resolution

    • Intenal ISP
    • 13MP @ 30fps
    • Dual camera framework

    Package

    Type

    • MFC VFBGA

    Size

    • 12.2*11.8*0.9mm
