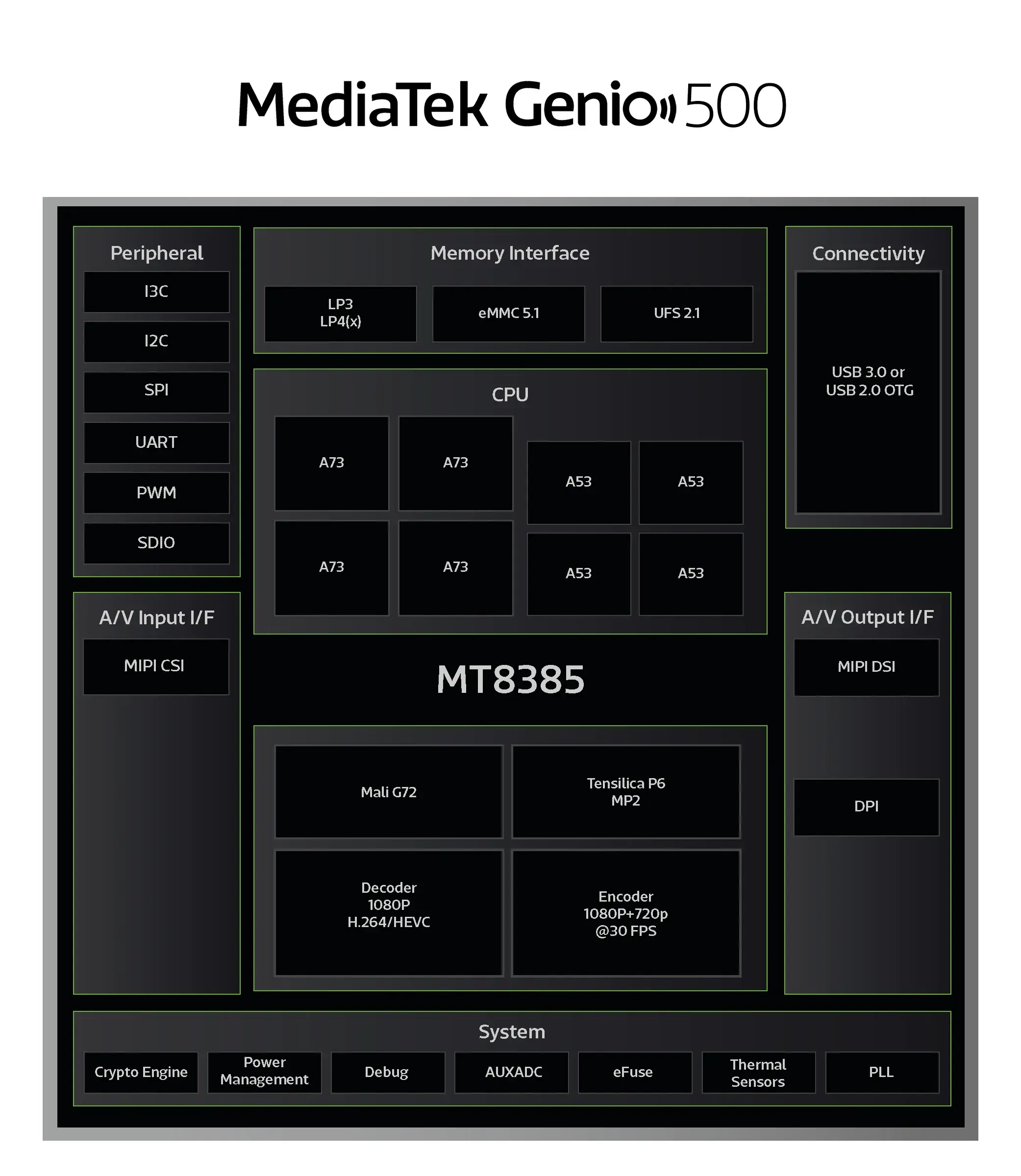

    Mediatek Genio 500 block diagram

    DEVELOPMENT KITS Arrow Right

    View Genio 500 Dev Kits

    MediaTek Genio 500

    A mix of highly capable processing, rich multimedia, high resolution cameras and touchscreens, fast wireless connectivity, and visual AI edge processing for wide-ranging applications in the home, retail commercial, and industrial spaces.

    Ready for fanless enclosure designs and off‑grid power solutions.

    Platform Highlights

    • Octa-core CPU with four big core processors
    • Dual-core VPU for visual AI
    • Highly capable tri-core GPU
    • Flexible memory support
    • High resolution camera and multi-camera framework
    • FHD+ display
    • Android, Yocto Linux, Ubuntu OS support
    • Power efficient 12nm SoC

    Specifications

    CPU

    Processors

    • 4X Arm Cortex-A73, 2.0 GHz
    • 4X Arm Cortex-A53, 2.0 GHz

    AI

    NPU

    • Dual-core Vision P6 VPU @ 525 MHz

    Memory

    Type/Speed

    • Up to 8GB LPDDR4X up to 3733Mbps
    • LPDDR3 support

    Storage

    Type

    • uFS
    • eMMC

    GPU

    Type

    • Arm Mali-G72 MP3, 800 MHz
    • Support for OpenGL, OpenCL, Vulkan

    Display

    Display

    • FHD+

    Video

    Decoding

    • 1080P30, HEVC/H.264

    Encoding

    • 1080P30, H.264

    Peripheral Interfaces

    IO

    • USB 3.0 x 1 or USB OTG Mode / 6 x I2C; 3 x I3C / 6 x I2C, 3 x I3C / 6 x SPI / 3 x UART

    Wireless Connectivity

    Type

    • Wi-Fi 5 dual-band single stream / BT 5.0 (via MT6631)
    • GNSS
    • FM radio

    Camera

    ISP/Recording Resolution

    • Internal ISP
    • 32MP @ 30fps
    • High-resolution, multi-camera framework
