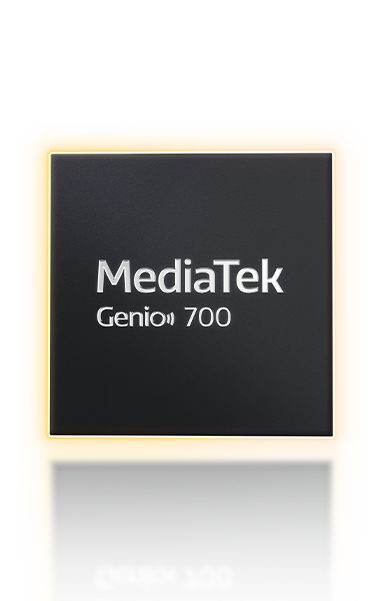

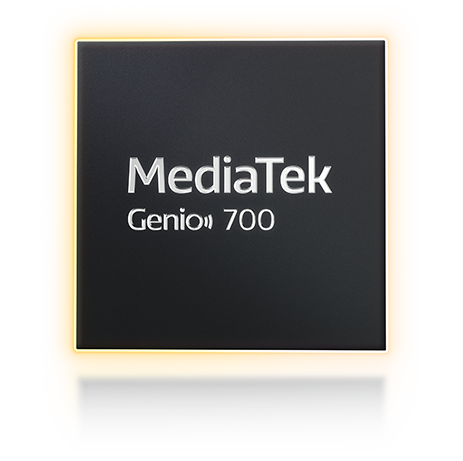

    MediaTek Genio 700

    High-performance edge-AI IoT platform that provides highly responsive edge processing, advanced multimedia, and multitasking OS for smart home, interactive retail, industrial and commercial applications.

    This highly power-efficient platform is ready for products that require fanless enclosure designs and off-grid power solutions.

    Smart Retail: Digital signage, desktop POS | Industrial: Edge AI, IoT gateway, HMI | Smart Home: Fitness, smart home appliances


    Platform Highlights

    • Highly efficient 6nm chip design
    • Octa-core CPU including 2x big core processors
    • NPU for edge AI, VPU for visual AI
    • Dedicated audio DSP
    • Up to 8GB of quad-channel memory
    • High performance tri-core GPU
    • High resolution 32MP camera with power-efficient internal ISP
    • Flexible high speed I/O interfaces
    • Wi-Fi 6
    • Android, Yocto Linux, Ubuntu OS options

    Specifications

    CPU

    Processors

    • 2 x ARM Cortex A78, 2.2 GHz
    • 6 x ARM Cortex A55, 2.0 GHz

    Memory

    Type/Speed

    • Up to 8GB, quad-channel LPDDR4X @ 3733Mbps

    Storage

    Type

    • eMMC 5.1

    AI

    NPU

    • DLA for edge AI
    • VPU for visual processing

    Audio

    DSP

    • Tensilica HiFi5 DSP

    GPU

    Type

    • Arm Mali-G57 MC3

    • Support for OpenGL, OpenCL, Vulkan

    Display

    Resolution

    • 4K60 + 4K30
    • Dual active display support

    Video

    Encoding

    • 4K30, H.265/H.264

    Decoding

    • 4K75, AV1/VP9/H.265/H.264

    Peripheral Interfaces (IO)

    PCI-Express

    • 1x PCIe Gen2 1-Lane

    Host/Host Device

    • 1x USB 3.1 (Host), 2x USB 2.0 (Host/Device)

    Interfaces

    • 1x Giga Ethernet MAC; 1x SD/SHDC/MMC and SDIO3.0/3.0 4xUART, 6xSPI; 4xI2C

    Audio

    • 3xPWM, 2x I2S for Audio

    Wireless Connectivity

    Wi-Fi/Bluetooth

    • Up to Wi-Fi 6/BT 5.2
    • Enabled via PCIe or USB2.0 interface

    Camera

    ISP

    • Internal ISP
    • 32MP @ 30fp
    • 16MP + 16MP @ 30fps
    • 2x MIPI CSI-2 4-Lane

    Package

    Type

    • VFBGA, 15*15*0.9mm
