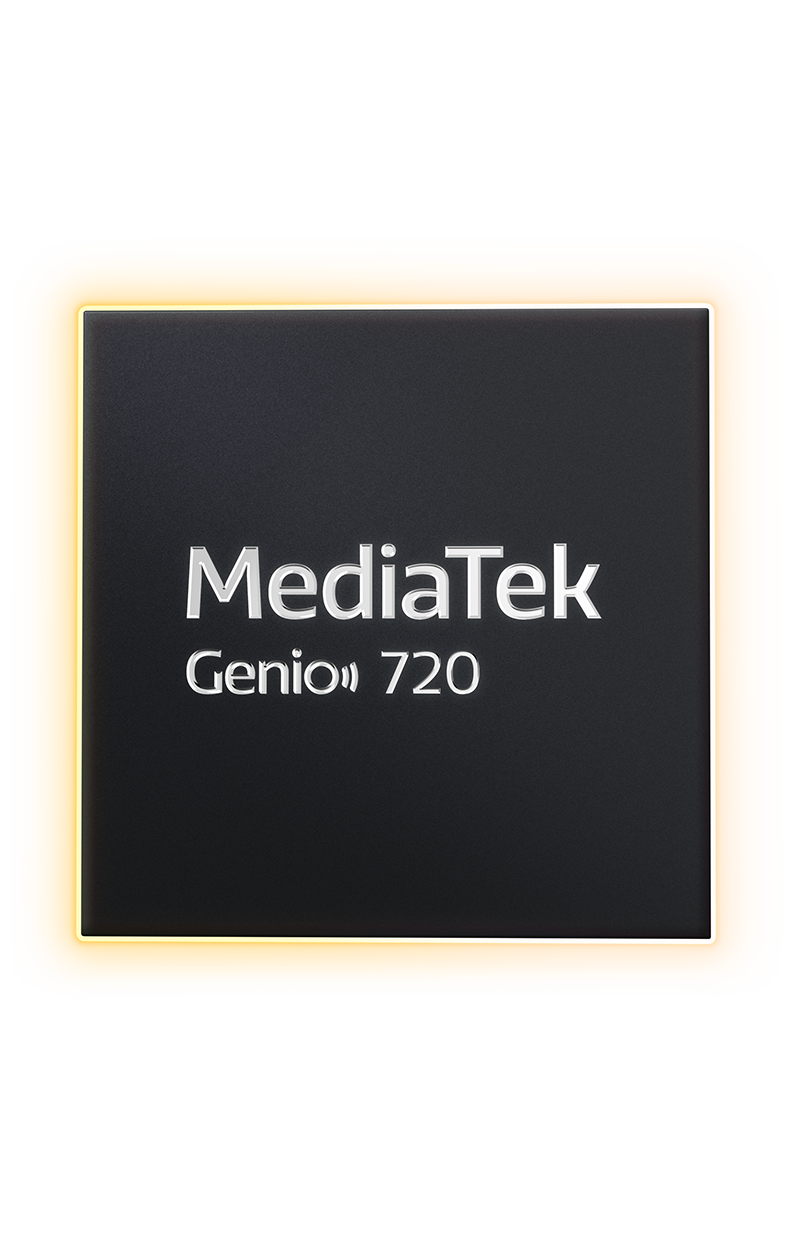

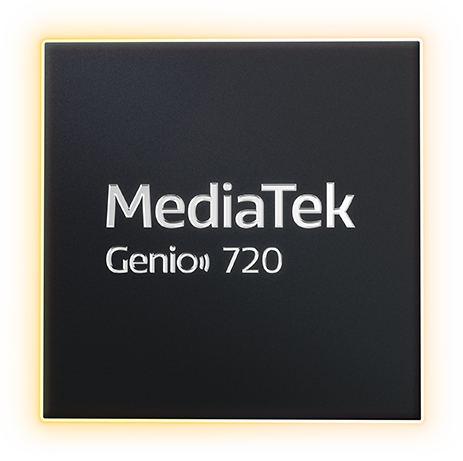

    MediaTek Genio 720

    MediaTek Genio 720

    The MediaTek Genio 720 is a powerful IoT platform equipped with generative AI capabilities and advanced multimedia features. It supports intelligent interactive HMI and is compatible with Android, Yocto, and Ubuntu operating systems, making it versatile for various applications such as smart homes, retail, industrial, and commercial sectors.

    Platform Highlights

    • Highly efficient 6nm SoC
    • Octa‑core CPU including 2x Arm Cortex-A78 processors up to 2.6GHz
    • Gen-AI capable best-in-class 10 TOPS performance (NPU+CPU+GPU)
    • Up to 16GB of LPDDR5 memory, ideal for LLMs
    • Up to 5K high-detail single display, or dual active displays
    • 4K HEVC video decoding and encoding
    • Up to 6x FHD30 cameras with MIPI virtual channels
    • Flexible high speed I/O interfaces
    • Pre-integrated MediaTek Wi-Fi 6/6E solutions, with also Wi-Fi 7 and 5G Redcap modules support
    • Android, Yocto Linux, Ubuntu OS options
    • OSM (Open Standard Module) design support
    • Wide temperature support (-40 to 105°C)
    • Long product life commitment

    Key Features

    The 8th Generation NPU offers full hardware acceleration for Transformer and Convolutional Neural Networks (CNN) models, while enhanced memory performance supports data-intensive Small Language Model (SLM) and Large Language Model (LLM) tasks.

    The platform supports a variety of display outputs, including LVDS (FHD), MIPI (2.5K), eDP 1.4 (4K60), and DP over Type-C (5K60 ultrawide), including dual active displays, making it ideal for commercial displays, smart retail, HMI, and other interactive or multi-window applications.

    Multi-gigabit, tri-band Wi-Fi, with the option for 5G RedCap module, offers increased bandwidth, reliability, and always-connected wireless benefits for IoT devices.

    This efficient platform is designed for low-power consumption, making it suitable for mobile devices that require fanless enclosures and battery operation.

    Specification

    Processors

    CPU

    2x Arm Cortex-A78

    • up to 2.6GHz at Commercial grade -20 to +95 C (Tj)
    • up to 2.4GHz at Industrial grade -40 to +105 deg C (Tj)



    6x Arm Cortex-A55 up to 2GHz

    Memory & Storage

    Memory Type & Speed

    Up to 16GB memory

    LPDDR4X up to 4266Mbps

    LPDDR5 up to 6400Mbps

    Storage Type

    UFS 3.1 2-lane

    eMMC 5.1



    AI

    NPU

    8th Generation NPU

    Graphics

    GPU Type

    Arm Mali-G57 MC2 up to 1.1GHz

    Support for OpenGL, OpenCL, Vulkan

    Display & Video

    Display Support

    FHD+FHD, 4K60, 5K60

    Dual active display support

    Video Encoding

    4K30, HEVC/H.264

    Video Decoding

    4K60, HEVC/H.264

    Peripheral Interfaces (IO)

    Host/Host Device

    2x USB 3.2 Gen-1 (Host, 1 shared with DP)
    2x USB 2.0 (Host)
    1x USB 2.0 (Host/Device)

    Interfaces

    1x Gigabit Ethernet MAC, 1x PCIe Gen2, 4x UART, 9x I2C, 6x SPI, 4x PWM

    Audio

    Audio-In: 2x I2S (2ch, M+M/S), 1x PCM (2ch), 2x DMIC(2ch)
    Audio-Out: 2x I2S (2ch, M), 1x PCM(2ch)

    Wireless Connectivity

    Wi-Fi/Bluetooth

    Integrated Wi-Fi 6 1x1 / 6E 2x2
    Wi-Fi 7 module available
    Bluetooth 5.3

    Camera

    ISP

    Internal 2x ISP
    32MP @ 30fp
    16MP + 16MP @ 30fps

    Package

    Type

    VFBGA 13.8x12.8mm, ball pitch 0.4mm
