      MediaTek Dimensity
      Flagship 5G Family

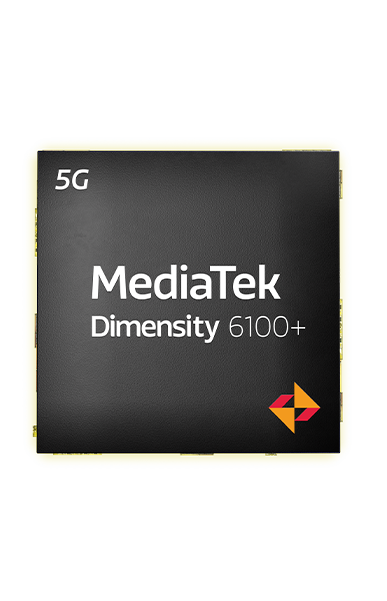

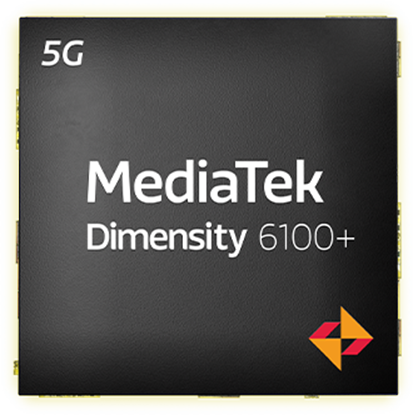

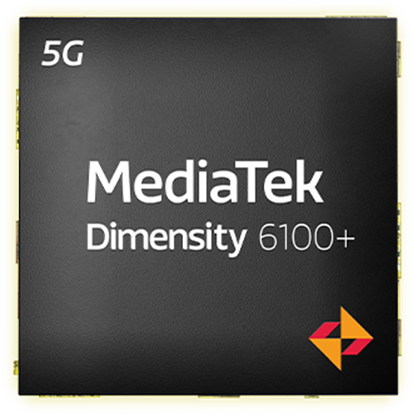

      MediaTek Dimensity 6100+

      A highly capable 5G SoC for mainstream and entry-5G smartphones offering advanced imaging, superfast connectivity with specialist enhancements, great gaming experiences, and exceptional power efficiency.

      Unleashing 5G's True Potential for Mainstream Smartphones

      3GPP R16 Standard Modem

      The Dimensity 6100+ features a 3GPP Release-16 standard 5G modem, including the latest connectivity enhancements now deployed by global cellular operators.

      MediaTek 5G UltraSave 3.0+

      MediaTek 5G UltraSave 3.0+ includes a complete suite of R16 power saving enhancements, plus MediaTek’s own optimizations that result in 13-30% greater power efficiency compared to competitor alternatives in common 5G sub-6GHz connectivity scenarios.

      Faster 5G that Reaches Further

      Addressing a maximum of 140MHz cellular spectrum enables up to 3.3Gb/s 5G downlink via 2CC carrier aggregation – up to 40% faster downlink speeds within urban environments, and up to 30% in suburbs, versus competitor alternatives. CA can apply mixed duplex FDD+TDD combining low and mid-band advantages, smartphones can access faster speeds and greater reach. Carrier aggregation also enables a seamless handover between two 5G connection areas across a coverage layer, where users receive over 30% greater throughput layer coverage than without CA.

      Situationally Intelligent Enhancements

      When traveling on high-speed rail, subways, or in vehicles underground, MediaTek’s 5G modem recognizes the connection environment and applies situationally intelligent enhancements designed to provide 20% more effective downlink speeds compared to competitor alternatives.

      LB+LB ENDC and 8-layer DL MIMO Support

      MediaTek Dimensity 6100+ supports dual, low-band ENDC and 8-layer DL MIMO, which are now required by many major global cellular operators for this class.

      Additional Key Features

      108MP with AI-Camera

      Support for 108MP camera sensors provides highly detailed photos, while advanced noise reduction technologies ensure selfies and low-light captures are always clear, sharp.

      • Hardware acceleration for dual cameras & depth perception
      • AI-camera enhancements such as AI-color + single camera bokeh

      Billion Color Display

      See contour-free true colors with billion color displays that can display real 10-bit images and videos, enhancing the user experience. Support for display speeds up to 120Hz helps reduce visual fatigue and provides a supremely smooth user experience, such as page scrolling and animations in apps.

      MediaTek HyperEngine 3.0 Lite Gaming Technologies

      Smartphone gaming enhancements that provide longer gameplay, faster network response and more reliable connectivity to ensure gamers always stay connected.

      • 3rd generation 5G Call/Data Concurrency – no missed calls during gaming
      • Smooth performance in game engines, demanding scenes, and intense gameplay
      • 5G/Wi-Fi concurrency with intelligent connection prediction

      Exceptionally Power-efficient & Compact Platform

      TSMC N6 (6nm-class) chip production process ensures its light on power, extending battery life even for demanding smartphone users. MediaTek’s engineering innovations have also created a more compact platform that gives device designers more freedom in their product creations.

      Specifications

      Processor

      CPU Type(s)

      • 2X Arm Cortex-A76 up to 2.2GHz
      • 6X Arm Cortex-A55 up to 2.0GHz

      Cores

      Octa (8)

      CPU Bit

      64-bit

      Heterogeneous Multi-Processing

      Yes

      Memory & Storage

      Memory Type

      LPDDR4x

      Max Memory Frequency

      2133MHz

      Storage Type

      UFS 2.2

      Graphics

      GPU Type

      Arm Mali-G57 MC2

      Camera

      Max Camera ISP

      • Up to 108MP
      • 16MP + 16MP

      Display

      Max Display Resolution

      2520 x 1080

      Max Refresh Rate

      Up to 120Hz

      Connectivity

      Cellular Technologies

      2G / 3G / 4G / 5G Multi-Mode, 4G Carrier Aggregation (CA), 5G Carrier Aggregation (CA), EDGE, 4G FDD / TDD, 5G FDD / TDD, GSM, TD-SCDMA, WDCDMA

      Specific Functions

      SA & NSA modes; SA Option2, NSA Option3 / 3a / 3x, NR TDD Band, NR FDD Band, DSS, NR DL 2CC, 140 MHz bandwidth, 256QAM NR UL 2CC, 256QAM VoNR, Dual VoNR, Dual 5G SIM, EPS fallback

      Peak Download Speed

      3.3Gbps

      GNSS

      • GPS L1CA+L5
      • BeiDou B1I+ B2a
      • Glonass L1OF
      • Galileo E1 + E5a
      • QZSS L1CA+ L5
      • NavIC

      Wi-Fi Antenna

      1T1R

      Wi-Fi

      Wi-Fi 5 (a/b/g/n/ac)

      Bluetooth

      5.2
