MediaTek

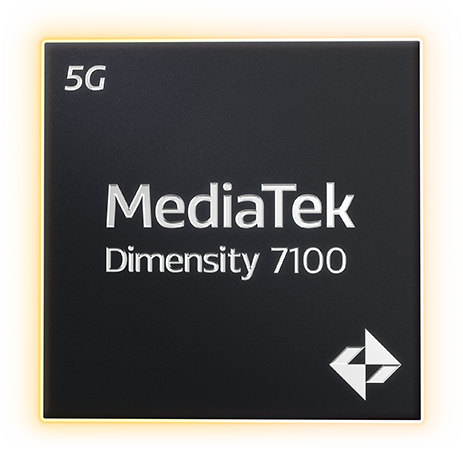

Dimensity 7100
More Performance
More Gaming
More Fun
MediaTek Dimensity
5G Family
The MediaTek Dimensity 7100 brings twice the big-core performance into a versatile 5G processor for mainstream smartphones that can also sport impressive cameras, faster charging, and a higher resolution display.
New Power Management Systems
MediaTek has ensured a power efficient design by combining whole smartphone enhancements into an advanced 6nm chip.
Power efficiency upgrades:
- Up to 5% more power-efficient in apps*
- Up to 23% more power-efficient modem*
- Up to 16% more power-efficient multimedia playback*
The Dimensity 7100 platform features a new power-management system with integrated 45W fast charging, support for UFCS universal power adapters, and extra-low voltage operation that extends battery life by up to 7% compared with standard voltage designs.
Additional Key Features
The octa-core CPU includes four big cores elevating everyday performance, and OS and app responsiveness in all tasks and activities. The advanced GPU upgrade powers games up to 8% faster*, for smoother, and longer gameplay.
- Arm Cortex-A78 up to 2.4GHz
- Arm Mali-G610 GPU
Smartphone designers can now integrate 200MP camera sensors into their devices, delivering incredibly detailed photos along with advanced HDR video using DCG/DAG technology. Features such as multi-frame noise reduction (MFNR) and hardware-accelerated face detection provide fast autofocus, ensuring selfies and portrait shots are consistently sharp and flattering.
- 6x faster FD performance**
- 10x AF detection area**
The Dimensity 7100 supports 10-bit color depth and ultra-sharp details with vivid HDR to create highly impressive visual experiences.
- Billion (10-bit) color depth
- Full HDR (HDR10/HLG/HDR10+/HDR vivid) media support
With downlink speeds of up to 3.3 Gbps and support for carrier aggregation across mixed duplex FDD and TDD combinations, users can enjoy exceptional performance and broader coverage. For device OEMs, the 3GPP Release-16 5G modem enables a single smartphone design for global markets.
MediaTek 5G UltraSave 3.0+ combines a complete set of Release-16 power-saving enhancements plus MediaTek’s proprietary optimizations, which together deliver up to 30% greater power efficiency than competing solutions in typical connectivity scenarios.
MediaTek's Bluetooth/Wi-Fi coexistence technology enables simultaneous operation in the 2.4 GHz band without interference, consistently maintaining reliable network and peripheral connectivity.
The Dimensity 7100 supports direct phone-to-phone Bluetooth connections over long distances (up to kilometers) without requiring cellular service, reducing data usage and providing an alternative communication method.
*Compared to previous generation Dimensity processor
**Compared to competitor alternative processors
Specifications
Processor
CPU Type(s)
- 4x Arm Cortex-A78 up to 2.4GHz
- 4x Arm Cortex-A55 up to 2.0GHz
Cores
Octa (8)
CPU Bit
64-bit
Memory & Storage
Memory Type
LPDDR5 @ 5500 Mbps
LPDDR4x @ 4266 Mbps
Storage Type
UFS 3.1
Camera
Max Camera ISP
200MP
Graphics
GPU Type
Arm Mali-G610 MC2
Display
Max Display Resolution
Up to 1200 x 2600
Max Refresh Rate
Up to 120Hz
Connectivity
Cellular Technologies
2G / 3G / 4G / 5G Multi-Mode, 4G Carrier Aggregation (CA), 5G Carrier Aggregation (CA), EDGE, 4G FDD / TDD, 5G FDD / TDD, GSM, TD-SCDMA, WDCDMA
Specific Functions
3GPP R16, Global SA & NSA; SA Option2, NSA Option3 / 3a / 3x, NR TDD Band, NR FDD Band, DSS, NR DL 2CC, 140 MHz bandwidth, 256QAM NR UL 1CC, 256QAM VoNR, Dual VoNR, Dual 5G SIM, EPS fallback
Peak Downlink Speed
3.3Gbps
GNSS
- GPS L1CA+L5
- BeiDou B1I+ B2a
- Glonass L1OF
- Galileo E1 + E5a
- QZSS L1CB + NavIC L5 + N1
- NavIC
Wi-Fi
Up to Wi-Fi 6 (a/b/g/n/ac/ax)
Wi-Fi Antenna
1T1R
Bluetooth
5.4
Bluetooth Long Range
BT/Wi-Fi Hyper Coexistence
