    MediaTek Helio P10
    at-a-glance

    LEARN MORE Arrow Right

    MediaTek Helio
    P Series

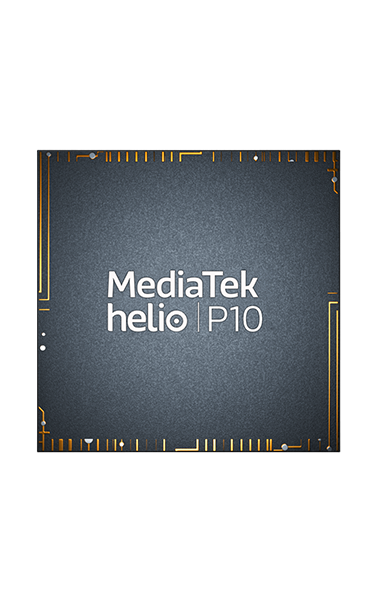

    MediaTek Helio P10 is the first P Series smartphone chip. As the world’s first product to use TSMC’s 28nm HPC+ process, the Helio P10 reduces processor power consumption by up to 30% compared to existing smartphone SoCs manufactured using alternative 28nm processes.

    Upgrading 4G Power Efficiency

    The MT6300 is an Envelope Tracking Module (ETM) designed to complement MediaTek’s CAT-6 modem. It monitors the voltage supplied to the RF power amplifier in real-time and makes continuous, fine-grained adjustments to optimize the amplifier’s efficiency.

    By ensuring the power amplifier operates at peak efficiency, the module reduces heat generation in the phone, particularly during LTE-A and Carrier Aggregation use. MediaTek’s ETM can save up to 20% of current at maximum output power.

    Specifications

    Processor

    CPU Type(s)

    • ARM-A53 @ 2.0GHz

    • ARM-A53 @ 1.2GHz

    Cores

    Octa (8)

    CPU Bit

    64-bit

    Heterogeneous Multi-Processing

    Yes

    Memory and Storage

    Memory Type

    LPDDR3 (Single Channel)

    Max Memory Frequency

    933MHz

    Max Memory Size

    4GB

    Storage Type

    eMMC 5.1

    Connectivity

    Cellular Technologies

    CDMA2000, EDGE, 4G FDD / TDD, HSPA +, TD-SCDMA, WDCDMA

    Specific Functions

    Single RF for LTE 2x20 CA, WCDMA, TD, EDGE, C2K 14/14 Primary/Diversity RX Ports

    LTE Category

    Cat-6

    General Connectivity

    Bluetooth, FM Radio, Wi-Fi

    GNSS

    Beidou, Galileo, Glonass, GPS

    Wi-Fi

    Wi-Fi 5 (a/b/g/n)

    Camera

    Max Camera ISP

    21MP

    Max Video Capture Resolution

    1920 x 1080

    Capture FPS

    24/30

    Camera Features

    TrueBridge ISP: 21MP@24fps / 16MP@30fps with ZSD. Dual ISP with improved 3A, denoise, demosaic and sharpness

    Graphics

    GPU Type

    Arm Mali-T880 MP2

    Max GPU Frequency

    700MHz

    Max Display Resolution

    1920 x 1080

    Video Encoding

    H.264

    Video Encoding FPS

    30

    Video Playback

    H.264, H.265 / HEVC

    Video Playback FPS

    30

    MediaTek Technologies

    MediaTek Technologies

    Adaptive Picture Quality, BluLight Defender, CorePilot, MiraVision, SmartScreen, UltraDimming
