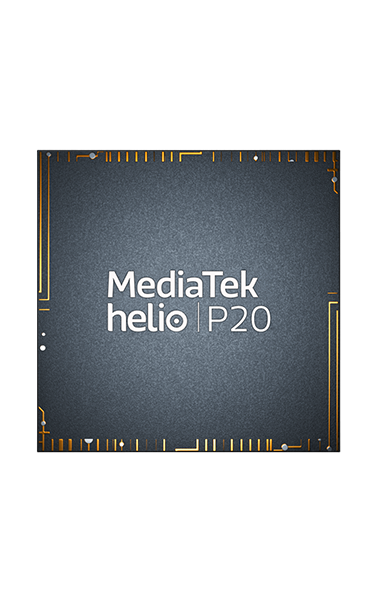

MediaTek Helio P20

Highly power-efficient, performance-oriented 4G LTE processor for premium, thin-design smartphones

A marked evolution of the successful MediaTek Helio P10, MediaTek’s first performance-range SoC in their top-tier MediaTek helio Family of processors, the MediaTek Helio P20 is built on a 16nm process node and offers 25% better power efficiency, higher processing performance and our most advanced camera / video features to date. MediaTek Helio P20 also offers significant multitasking and multimedia improvements thanks to its new LPDDR4X memory support.


Find the latest information about our Helio family of chipsets at Powered By MediaTek.


processor

CPU Type:
ARM Cortex-A53
Max CPU Frequency:
2.3GHz
Cores:
Octa (8)
CPU Bit:
64-bit
Heterogeneous Multi-Processing:
Yes

memory And Storage

Memory Type:
LPDDR3,  LPDDR4x
Memory Frequency:
2x LPDDR4(X) up to 1600MHz, 1x LPDDR3 up to 933MHz
Max Memory Size:
LPDDR4(X) up to 6GB, LPDDR3 up to 4GB
Storage Type:
eMMC 5.1

connectivity

Cellular Technologies:
Carrier Aggregation (CA),  CDMA2000 1x/EVDO Rev. A (SRLTE),  FDD / TDD LTE
Specific Functions:
L + W DSDS support, LTE TDD 64QAM UL
LTE Category:
Cat-6
General Connectivity:
Bluetooth,  FM Radio,  Wi-Fi
GNSS:
Beidou,  Galileo,  Glonass,  GPS
Wi-Fi:
a/b/g/n/ac

camera

Camera ISP:
24MP
Max Video Capture Resolution:
3840 x 2160
Capture FPS:
24fps
Camera Features:
ZSD, 12bit ISP, 3A HW engine

graphics

GPU Type:
ARM Mali-T880 MP2
Max GPU Frequency:
900MHz
Max Display Resolution:
1920 x 1080
Video Encoding:
H.264
Video Encoding FPS:
4Kx2K @ 30fps
Video Playback:
H.264,  H.265 / HEVC
Video Playback FPS:
4Kx2K @ 30fps

mediatek Technologies

CorePilot,  Imagiq,  MiraVision
