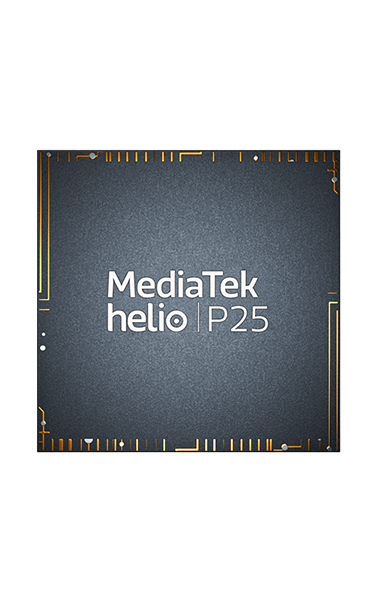

MediaTek Helio P25

Premium Octa-Core Cat-6 LTE SoC for dual camera, ultra-thin smartphones

As a premium performance chip within the MediaTek Helio family, MediaTek Helio P25 combines the power of 16nm Octa-core processing with a superior ISP built with dual camera devices in mind. Designed for Android smartphones that aim to differentiate through exceptional camera features and overall premium image quality, the two camera captors allow up to 13MP each or a single captor up to 24MP. By adopting a 16nm FinFET+ process node, MediaTek Helio P25 offers an Octa-core Cortex-A53 processor clocked at up to 2.6GHz that delivers more power while using less energy than competing solutions.


Find the latest information about our Helio family of chipsets at Powered By MediaTek.


processor

CPU Type:
ARM Cortex-A53
Max CPU Frequency:
2.6GHz
Cores:
Octa (8)
CPU Bit:
64-bit
Heterogeneous Multi-Processing:
Yes

memory And Storage

Memory Type:
LPDDR3,  LPDDR4x
Memory Frequency:
LPDDR4(X) up to 1600MHz, LPDDR3 up to 933MHz
Max Memory Size:
LPDDR4(X) up to 6GB, LPDDR3 up to 4GB
Storage Type:
eMMC 5.1

connectivity

Cellular Technologies:
Carrier Aggregation (CA),  CDMA2000 1x/EVDO Rev. A (SRLTE),  FDD / TDD LTE
Specific Functions:
LTE TDD 64QAM UL
LTE Category:
Cat-6
General Connectivity:
Bluetooth,  FM Radio,  Wi-Fi
GNSS:
Beidou,  Galileo,  Glonass,  GPS
Wi-Fi:
a/b/g/n/ac

camera

Camera ISP:
13MP+13MP,  24MP
Max Video Capture Resolution:
3840 x 2160
Capture FPS:
24fps
Camera Features:
ZSD, 12bit Dual ISP, 3A HW engine, Bayer and Mono dual sensor support

graphics

GPU Type:
ARM Mali-T880 MP2
Max GPU Frequency:
1GHz
Max Display Resolution:
1920 x 1080
Video Encoding:
H.264
Video Encoding FPS:
30fps
Video Playback:
H.264,  H.265 / HEVC
Video Playback FPS:
30fps

mediatek Technologies

CorePilot,  Imagiq,  MiraVision
